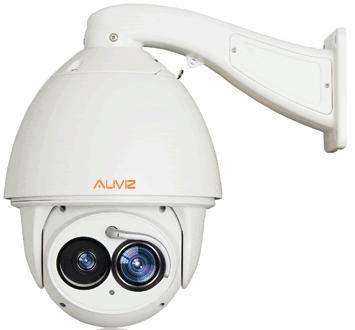

1.3MP Laser IP PTZ Camera
Model: AS-IP8830-1.3MP-HS
6.5” Inch laser IP PTZ Camera which mostly used for city security surveillance.
1. 30X Laser 1.3MP IP PTZ Camera
2. 360° panning and 180° tile rotate
3. With alarm ,audio and SD slot
4. IR 300M surveillance for day and night.
▌Introduction
Order No. :
AS-IP8830-1.3MP-HS-W (wall bracket)AS-IP8830-1.3MP-HS-D ( Ceiling Bracket)AS-IP8830-1.3MP-HS -WB (Wall bracket with Power supply box)
Auto-Tracking function with zoom in
The Dome will automatically zoom in and track the moving object according to the user’s setup via OSD. The sensitive of moving object range could set up as higher/middle/lower range.
IR Distance
l Minimum Illumination 0.5 Lux.
l Adopt high performance Laser light, low power consumption, IR distance 300-350M
l Constant current circuit design, IR lights enjoy 60,000 hours life-time.
PTZ Function
• Stepless speed changes, auto zoom/speed matching
• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 400o/S (high speed IR speed dome)
• Auto object track with zoom in/out and motion detection (Auto Track Model)
• Timing actions for 7 days of programmable schedule
• Built-in Semi-conductor heater & digital temperature sensor
• PWM cooling fan vari-speed temperature control
• Reserved network interface and space for network module
• Pan Tilt accuracy +/- 0.1o, 256preset positions
• 8 cruising tracks, each cruising track has 32 presets
• 4 pattern tours,10 Mins memory, 500 programmable instructions
• 8 auto scan with use-defined left and right boundaries and settable scan speed
• Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions
• Soft Address Function: the use can set up the dome address without uninstall the dome
PTZ Motor
• Delicate stepping motor, stable, sensitive and accurate
• 360° Endless Pan and 90° Tilt range (auto-flip) without blind area
• Stepless speed change, auto zoom/speed matching
• Near / far IR Light auto matches camera zoom in/out
Zoom Module
l support auto iris, auto-focus, AWB, BLC
l support ultralow illumination, 0.05Lux/F1.4 (color), 0.01Lux/F1.4 (B/W), 0Lux with IR
l support 3DNR, D-WDR
l effective pixel is 1.3MP
l 20X Optical and 12X Digital
Network Function
l Adopt high-performance platform, stable and reliable performance
l Support Ethernet control
l Can view video by IE browser and Client software
l Supports NAS storage, Video can continue transmit from break network, support Max. 8pcs NAS disks
l Support dual-stream, H.264/MJPEG compression
IP67 Weatherproof
• 6 Inch High die-cast alloy aluminum construction
• High Precision Module with high heat conductivity
• Fully enclosed isolation design for heat sink
• Nanometer Dustproof, waterproof and fog-proof lens
Build in Air Duct Ventilation Technology
Could work at the temperature from -40degree +60degree
▌Specification
| Model No. | AS-IP8830-1.3MP-HS | |
| Zoom module | Image sensor | 1/2.8" Pro Type Exmor Cmos |
| Effective pixel | 1.3 Megapixels,HD1280x960@30fps | |
Minimum Illumination | Color: 0.05Lux @ (F1.4，AGC ON), B/W: 0.01Lux @(F1.4，AGC ON)，0 Lux with IR | |
| White balance | auto / manual / auto-tracking /outdoor/indoor/fluorescent lamp/sodium lamp | |
| Gain control | auto/manual | |
| SNR | More than 50dB | |
| Noise reduction | 3D&2D | |
| BLC | ON/OFF | |
| WDR | Support | |
| Shutter | 1/1-1/10,000s | |
| Day/night mode | Auto ICR color to black | |
| Focus mode | Auto /semi-auto /manual | |
| Focal length | f=4.7~94.0mm | |
| Zoom speed | About 3 sec. (optical, wide angel-telescope) | |
Horizontal view angel | 55.4-3.2 degrees ( wide angel-telescope) | |
| Close-up | 10-1000mm( wide angel-telescope) | |
| f-number | F1.4-F3.5 | |
Function
| IR distance | 300M-350M (with Laser High performance light) |
| IR angle | adjustable | |
| Pan speed | 0.01°-360°/S | |
| Tilt speed | 0.01°-120°/S | |
| Tilt range | -10°-90°, auto-flip 180° | |
| Manual speed | High, medium, low (adjustable) | |
| Proportional Zoom | Support | |
| Number of Preset | 256 presets | |
| Patrol | 8 patrols, up to 32 presets per patrol | |
| Pattern | 8 scans with settable left and right boundaries | |
| Scan between two presets | support | |
| Park Action | presets/pattern/patrol/scan between two presets/ auto | |
| Area-limit | support | |
| Network | Max. Resolution Video Compression | 1280X960@30fps H.264 main profile compress Support CBR/VBR/MJPE/JPEG baseline |
| Frame rate | 30 FPS(1280x960), 25 FPS(1280×720); | |
| Video compression | H.264/MJPEG | |
| Network protocol | TCP/IP，HTTP，DHCP，DNS，DDNS，RTP，RTSP，PPPOE，NTP，UPNP，SNMP，FTP，802.1x，QoS，HTTPS，IPv6（SIP，SRTP），ONVIF | |
| Preview videosimultaneously | Max. 6 channels | |
| Dual-stream | Support | |
| User permission | Max. 32 users (3-level: administrator, operator, only browse ) | |
| Safe mode | Authorized user & password, and MAC address binding; HTTPS encryption ; IEEE 802.1x network access control | |
| Network interface | Built-in RJ45 port，support 10M/100M | |
| API | Support open API, ONVIF The Third-party management platform | |
| Client | Support iVMS-4200 PCNVR | |
| Brower | Support IE7, IE8, IE9, Chrome8+, Fireforx3.5+, Safari5+ ,and google brower | |
| Input/output | Menu | Chinese/English |
| Others | PTZ control protocol | Network |
| OSD | Graphics OSD for easy operate | |
| Power Supply | DC 12V | |
| Power Consumption | MAX. 10W (day); MAX. 30W (night) | |
| Working Temperature/Humidity | -40degree +60degree, ≤90%RH( frostless ) | |
| Protection Grade | TVS4000V lightning protection, surge protection and voltage transient protection, weather proof: IP67 | |
| Package size (mm) | 341×228×510 | |
| Weight (Kg) | 10KG | |
