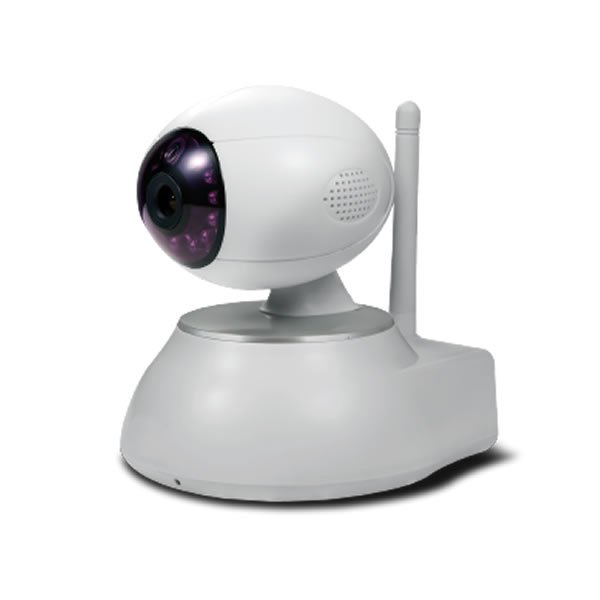

1 Megapixel Mini IP Home Camera
Model: AS-8901-1MP
1 Megapixel Mini IP Home Camera
1.PT function at 355 degree panning and 90 degree vertical2.Real-Time Frame Rate: 1280x720P@30FPS Max
3.Power Supply 5V or Onvif V2.2 Compatibility
4.Built In MIC and Wifi 802.11b/g/n
▌Introduction
1.1/4-inch 1.0 MP CMOS
2.3.6mm Fixed Lens
3.IR View Distance:8-10m(12pcs leds)
4.Support Plug & Play and Video Push Function
5.WPS & AP function
6.PT function at 355 degree panning and 90 degree vertical
7.Real-Time Frame Rate: 1280x720P@30FPS Max
8.Power Supply 5V or Onvif V2.2 Compatibility
9.Built In MIC and Wifi 802.11b/g/n
▌Specification
MODEL | AS-8901-1MP |
Main Processor | Hi3516 |
Device Type | 1.0 Megapixel CMOS Sensor |
Min. illumination | 0.01 Lux (IR LED On) |
CAMERA | |
Day/Night | Yes |
Lens | 3.6MM |
IRIS | Fixed Aperture F1.2 |
IR LED | Yes |
IR Distance | 8-10M |
Viewing Angle | Pan: 355°/ Tilt:90° |
VIDEO | |
Compression | H.264 |
Resolution & Frame | Main Flow: 1280*720@30fps Minor Flow: 640*360@30fps |
Code Stream | Support Dual Stream |
Support Dual Stream | 32-4096kbps |
Bit Rate Type | CBR & VBR |
SNR | Above 50DB |
Image Enhancement | Automatic White Balance, Backlight Compensation，Luminance, Contrast, Color Adjustment |
NETWORK | |
Video Cover | 4 privacy mask adjustable |
Superposition of Words | User Defined |
Flip Config | Up/Down, Left-right-flip |
Alarm Procession | The central control monitor, Got to PTZ preset pos, Send E-mail, Log Record, SD Card storage, etc. |
Protocol & Service | TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP, RTCP,Pelco-D |
Security | IP Address Filter，User Password Protection, User Access Log |
WEB Browser | Microsoft Internet Explorer 6.0 or above，google,firefox, etc |
AUDIO | |
Input/Output | 1CH |
Audio Compression | G.726 |
GENERAL | |
Power | DC 5V/2A |
Temperature | -10°C——60°C |
Operating Humidity | 10%-80% |
Approvals | CE/FCC |
Accessories | Power adapter, Network Cable, Stand, User Manual, Disk, Screw Bag |
Product Weight | 0.5KG |
