Mini IP PTZ Camera

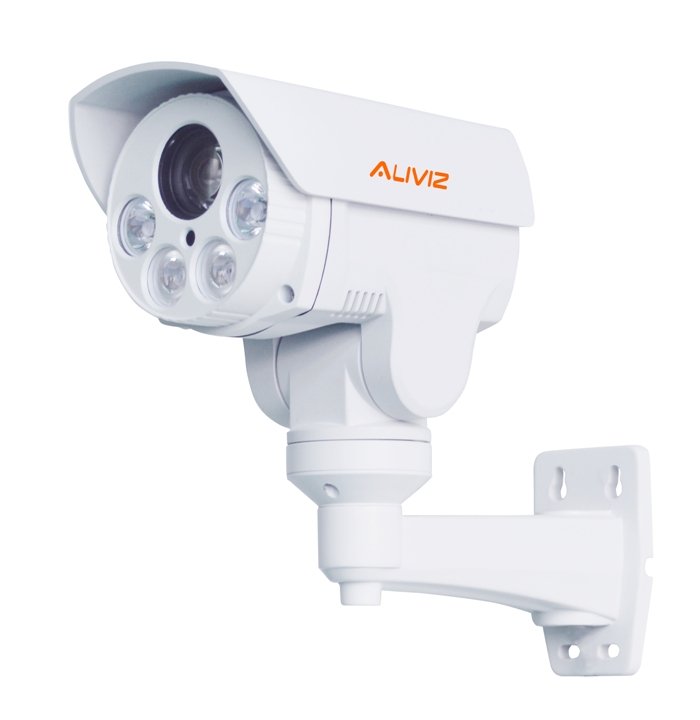

10X 1080P Mini IP Bullet PTZ Camera
$0.00$0.00(In stock)
Model: AS-IP805-V10
1. 3” Mini PTZ could use for both outdoor and indoor
2. 10X ,3X for both 2MP and 1.3MP Optional
3. 10X Mini PTZ Support audio, alarm and PoE
Categories: Mini IP PTZ Camera
▌Introduction
▌Specification
Model No. | AS-IP805-V10 |
Image Sensor | 1/2.8" Sony Exmor CMOS Sensor |
Effective Pixels | 1080P(1920X1080) |
Electronic Shutter | 1/25s ~ 1/100000s |
Day & Night | ICR |
Min. Illumination | 0lux (IR ON) |
Audio compression | G.711-u law |
Communication | NO |
Image Settings | AWB, AGC Adjustable |
Exposure Mode (Auto/Iris Priority/Shutter Priority/Manual) | |
Sharpness, Saturation, Brightness & Contrast Adjustable | |
WDR Range | Digital WDR |
Noise Reduction | 2D/3D-DNR |
Image Orientation | Mirror/Flip |
Privacy Zone | Yes |
Motion Detection | Yes |
Video Compression | H.264 |
Resolution | 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) |
Bit rate | 32kbps-16Mbps |
Encode Mode | VBR/CBR |
Image Quality | Five levels under VBR; Free adjustment under CBR |
Lens | 5.1-51mm |
Iris | Auto Iris |
Lens Mount | Fixed mount |
Water-proof | IP66 |
Bracket | 1-Axis Wall Bracket |

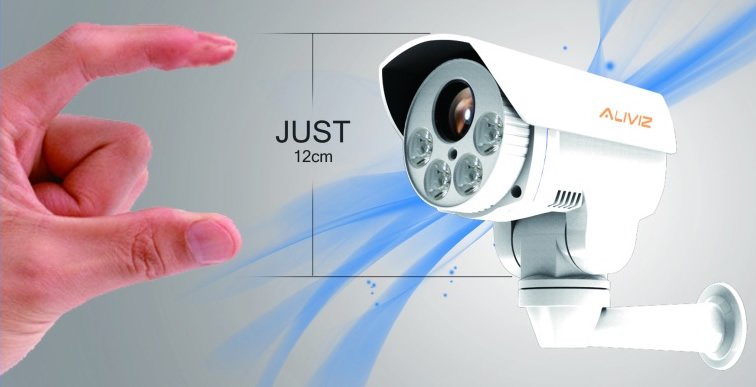

Dimensions | 153mm×93mm×130mm(L×W×H) |
Weight(gross) | 920g |
Optical Zoom | 10X |
Digital Zoom | 10X |
IR Distance | 80-100M |

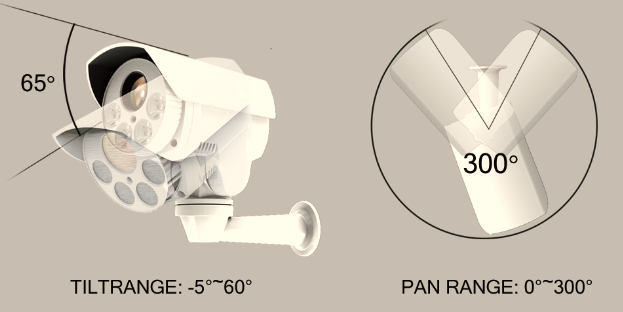

Pan Rotation Range | 0〫~300 〫 |
Tilt Rotation Range | -5〫~60 〫 |
Pan Speed | 0.5〫~15 〫/s |
Tilt Speed | 0.5〫~10 〫/s |
Preset Position | 256 |
Network | RJ45 (+PoE) |
Power | DC Socket |
SD Card | (Optional) |
RS485 | Optional |
Alarm | Optional |
Remote Monitoring | IE Browsing, CMS 3 Control Software |
User Access | Supports simultaneous monitoring for up to 3 users with multi-stream real time transmission |
Network Protocol | TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
ONVIF | Yes |
Ethernet | 100Mbps |
PoE | Optional |
Power Supply | DC12V/PoE |
Work Environment | -30℃~60℃, 10%~90% Humidity |
