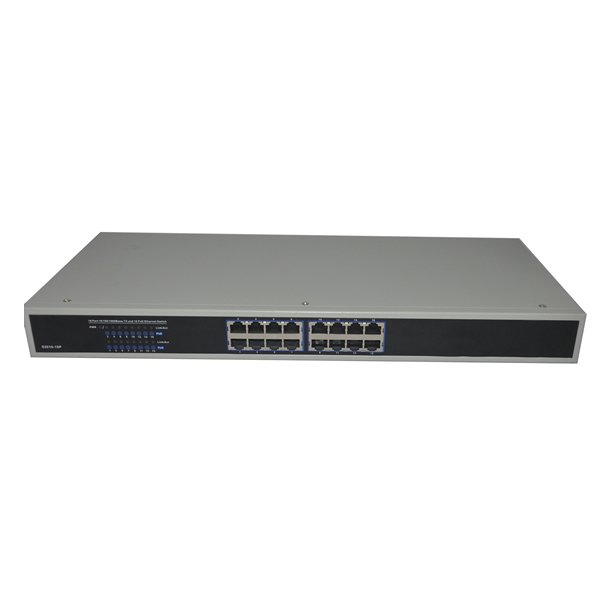

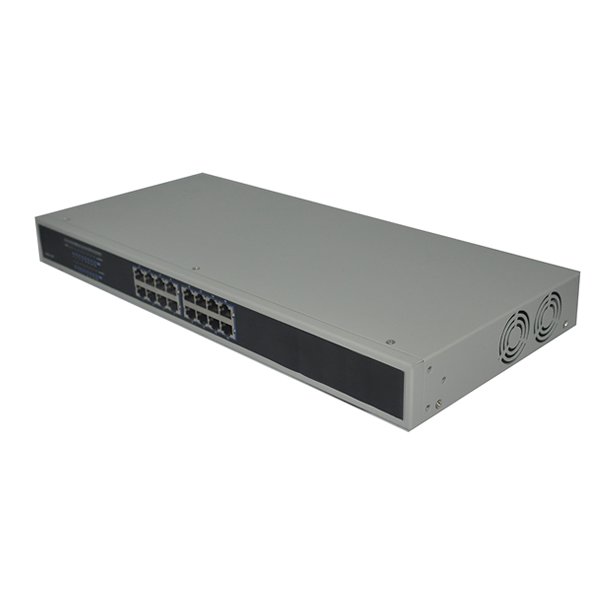

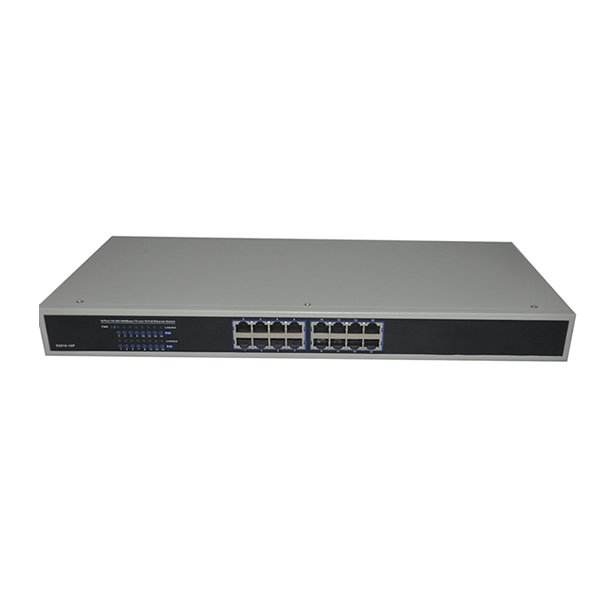

16Ch 1000M PoE Switch

▌Introduction

The AS-P1016T is a 16G POE Switch designed by Aliviz security Technology Company. It provides 16 10/100/100M RJ45 Ports and with big buffer, will be helpful in the security project. It provides 8/16 PoE ports. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The AS-P1016T is a 19’’ case-shaped device with 1U high. It is with the internal industrial power supplies, have two optional power supplies—250W, 400W. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Product Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 16 10/100/1000 Base-TX ports

•   Provides 8/16 PoE ports, Each POE port output 30W max power

•   Build in power supplies, optional 250W or 400W

•   High back-plane bandwidth 32Gbps

•   Up to 8k MAC address table size

•   IEEE802.3x Flow control

•   19’’ rack-mounted size metal case for the POE switch

•   Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

•   Surge protection for power port and data ports

•   EMI standards complies with FCC, CE class B

•   Extend Function: Port Lightning Protection, Power lightning protection, solid vlan.
