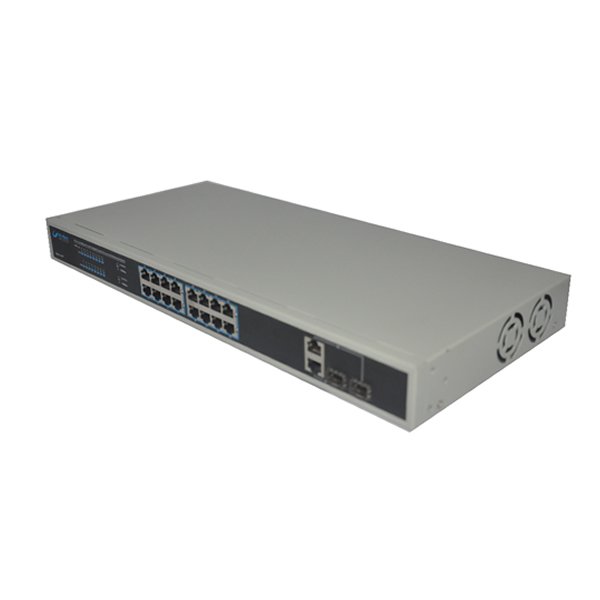

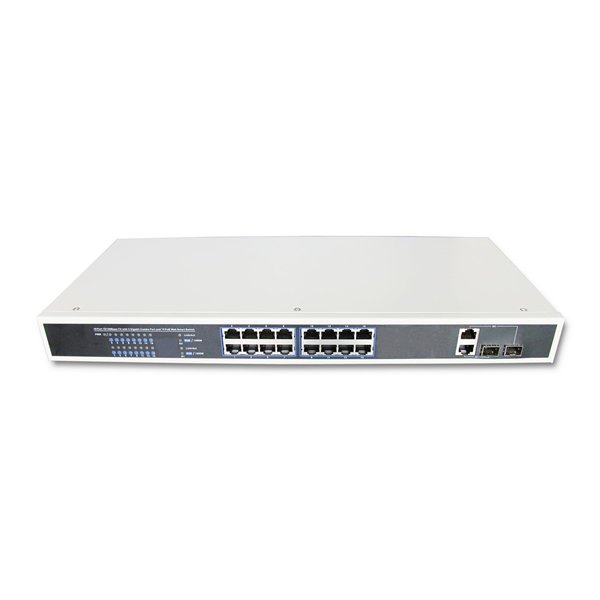

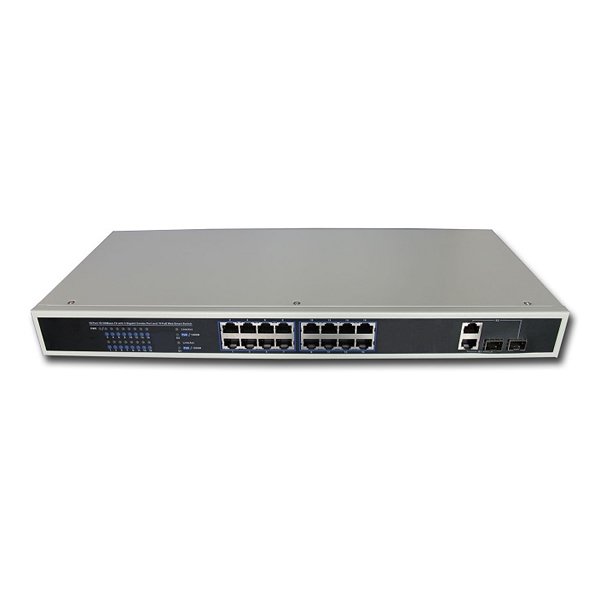

16Ch 100M PoE Switch

▌Introduction

The AS-P1016 is a 16 ports 10/100M and two Gigabit Uplink Combo Ports POE Switch which is designed by Aliviz security Technology Company. It is used for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. It provides 16 10/100Mbps Auto-Negotiation RJ45 ports, 2 Gigabit Combo Ports( SFP+RJ45) and 8 or 16 POE ports. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

AS-P1016 is a 19’’ case-shaped device with 1U high. It is with the internal industrial power supplies, have two optional power supplies—250W, 400W. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Extend Function: Power lightning protection, solid vlan.

Product Features:

•    IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

•    Provides 16 10/100Base-TX ports, 2 Gigabit Combo Ports( SFP+RJ45)

•    Provides 8/16 PoE ports, Each POE port output 30W max power

•   Build in power supplies, optional 250W or 400W

•    High back-plane bandwidth 7.2Gbps

•   4K entry MAC address table of the PoE switch with auto-learning and auto-aging

•    IEEE802.3x Flow control

•    Surge protection for power port and data ports

•   19’’ rack-mounted size metal case for the POE switch

•   Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

•    EMI standards complies with FCC, CE class B

•   Extend Function: Power lightning protection, solid vlan.
