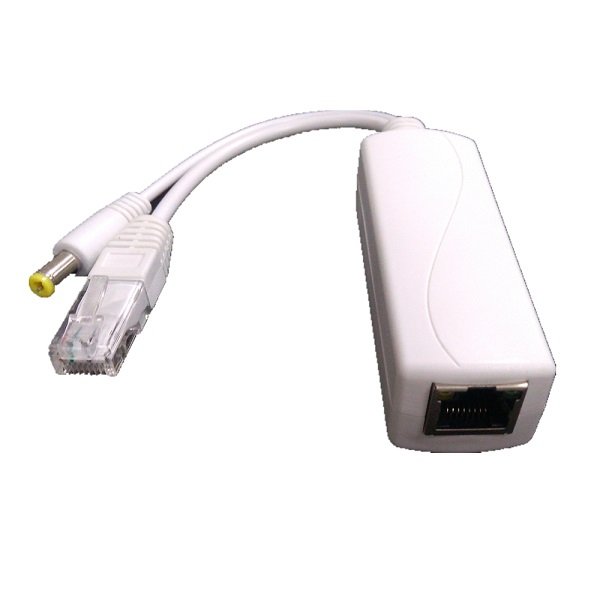

1CH PoE Splitter
Model: AS-PD803
1CH PoE Splitter used for external PoE to IP camera which dont have PoE function.
1.External PoE for all IP Camera
2.100 RJ45 PoE Port (DATA + POWER IN)
▌Introduction
The AS-PD803 PoE Splitter is designed by Aliviz security Technology Company which is used for splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Support PoE applications in fast Ethernet environments.
The modules compliant with IEEE 802.3af power classification and support PSE Alternative A and Alternative B connections. Maximum power output can reach 12W. Tiny size, 80mm (L) x 27mm (W) X 22mm (H), wide input voltage range, 36Vdc to 57Vdc and less external components needed one output decoupling capacitor.
Features
- Complies with IEEE802.3af.
- Support PoE applications in fast Ethernet environments.
- Auto-Sensing Algorithm enables taking power from IEEE802.3af PSE.
- Splits the 48VDC power over RJ45 Ethernet cable into different DC output.
- Support wide input voltage range 36Vdc to 57Vdc.
- Maximum power output up to 12W.
- Output 12VDC/1A.
- Thermal cut off.
- Short circuit protection.
- High efficiency DC/DC converter.
- LED indicators for power input indication.
- Plug-and-Play.
▌Specification
| Item | AS-PD803 |
| Input | 1 10/100 RJ45 PoE Port (DATA + POWER IN) |
| Output | 1 10/100 RJ45Cable (Only DATA) 1 DC Jack Cable (DC OUT) |
| Network Media | 10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5,5E Unshielded Cable |
| Pass Through Data Rates | 10/100Mbps |
| Power Output | 12VDC/1A |
| Input Power Requirements | DC Input Voltage: 36 to 57 Vac |
| Indicators | PoE ready / in-use |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Dimensions | 80x27x22mm |
| Environmental Conditions | Operating Ambient Temperature:0 to 40℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-20 to 70℃ Storage Humidity: Maximum 95%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) |
