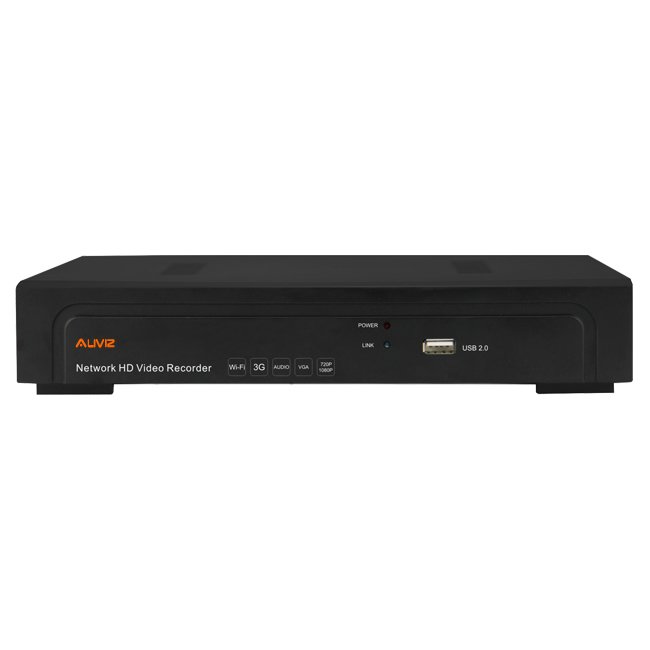

1HDD 1U 16CH 1080P Network Video Recorder

1HDD 1U 16CH 1080P Network Video Recorder

$0.00$0.00(In stock)

Model: AS-N1620-1U

16CH 1U NVR with 1HDD could control 8CH 1080P or 9CH 5MP IP Camera and support aliviz wifi ip camera and 3G.

16×(1920*1080)+sub[960*576]+4Ref.+4Play/16ch 2.0MP

9×(2592*1944)+sub [960*576]+4Ref.+1Play / 9ch 5.0MP


16CH 1U NVR with 1HDD could control 8CH 1080P or 9CH 5MP IP Camera and support aliviz wifi ip camera and 3G

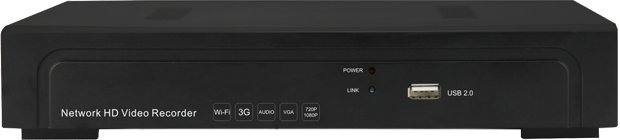

Front panel:

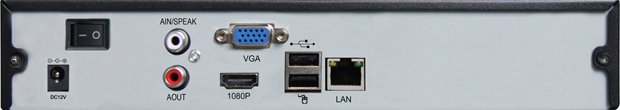

Rear panel:

Key Features:

• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR

at any time and any place

• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based

on Onvif, RTSP standard

• Support megapixel HD network video preview, storage and playback;

• Support search, playback and backup by event;

• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,

and 4 channels playback;

• Support monitor PTZ on preview mode

• Offer CMS for free

Main Functions:

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for

the project construction;

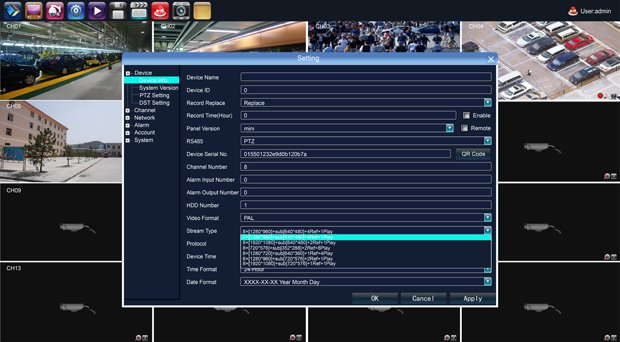

2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters

are more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly

under preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is very

fast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can

be viewed directly;


Model Number


Operating System

Embedded LINUX operating system

Image Code Control

Image code quality adjustable, variable bitstream and constant bitstream optional

Dual Stream

Each channel can set main stream and sub stream

Video Standard


Monitoring Image Quality

1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)

Image Motion Detection

Each screen can set multiple detection areas and set 6-level sensitivity

Recording Playback Quality

1/4/8ch playback simultaneously

Region Cover

Every channel can set 4 cover regions(IPC Support)

Recording Mode

Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup

Operation Way


Local Login

Username and password

Recording Storage

Local HDD, network

External Ports

Video Input

①16×(1920*1080)+sub[960*576]+4Ref.+4Play      16ch 2.0MP IP Camera

②9×(1280*960)+sub[960*576]+4Ref.+8Play    9ch 1.3MP IP Camera

③9×(2048*1536)+sub[960*576]+4Ref.+4Play        9ch 3.0MP IP Camera

④9×(2592*1944)+sub [960*576]+4Ref.+1Play              9ch 5.0MP IP Camera

Audio Input

16/9ch network audion input

Video Output

1ch VGA+1ch HDMI

Audio Output

1ch RCA output

Network Port

1 RJ45,10M/100M/1000M self-adaptive LAN port

USB Port

2 USB 2.0 ports

Alarm Input


Alarm Output


Wireless Port



HDD Port


MAX Capacity

Each port supports MAX 4TB HDD

Mobile Surveillance

Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Power Supply


Power Consumption

≤20W(without HDD)

Working Temperature


Working Humidity



Equipment:260mm×220mm×43mm, Packing: 355mm×255mm×88.5mm

Weight(without HDD)

N.W.:1.5Kg;With packing:2.4Kg

Outside Carton

10 pcs/carton. 525mm×455mm×365mm; Weight:25 Kg

Installation Way

Desktop Installation
