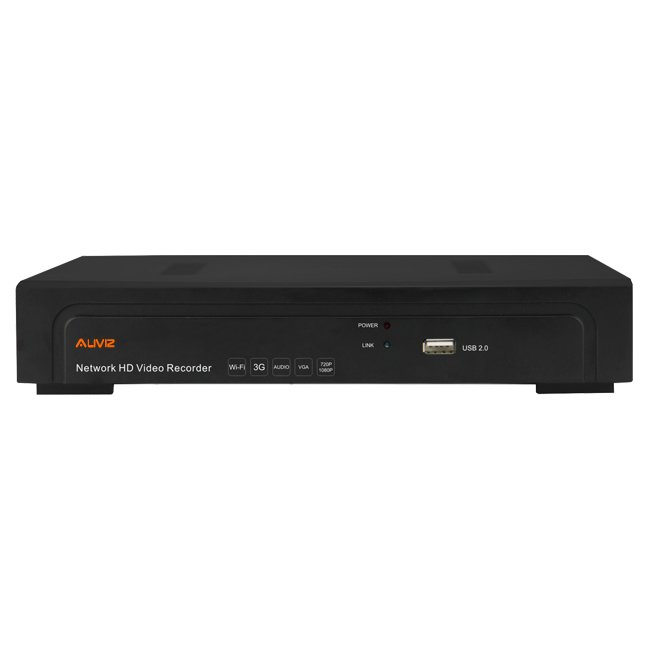

1U 4Ch NVR Supports 3MP and 5MP IP Camera

▌Introduction

1U 4Ch NVR Supports 3MP and 5MP IP Camera

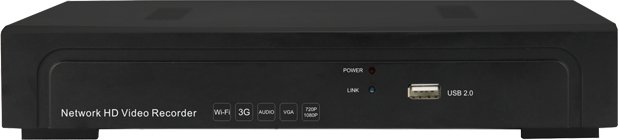

Front panel

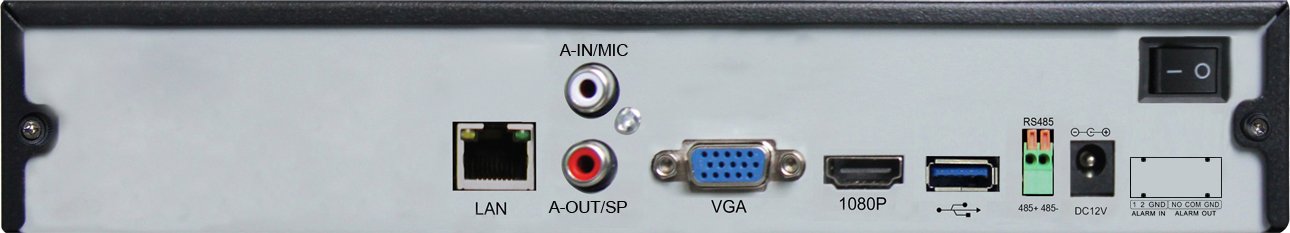

Rear panel

Features

• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR

at any time and any place

• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based

on Onvif, RTSP standard

• Support megapixel HD network video preview, storage and playback;

• Support search, playback and backup by event;

• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,

and 4 channels playback;

• Support monitor PTZ on preview mode

• Offer CMS for free

Main Functions：

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for

the project construction;

2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters

are more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly

under preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is very

fast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can

be viewed directly;

8. With 3G, WIFI wireless connection functions;

9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;

10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD

▌Specification
