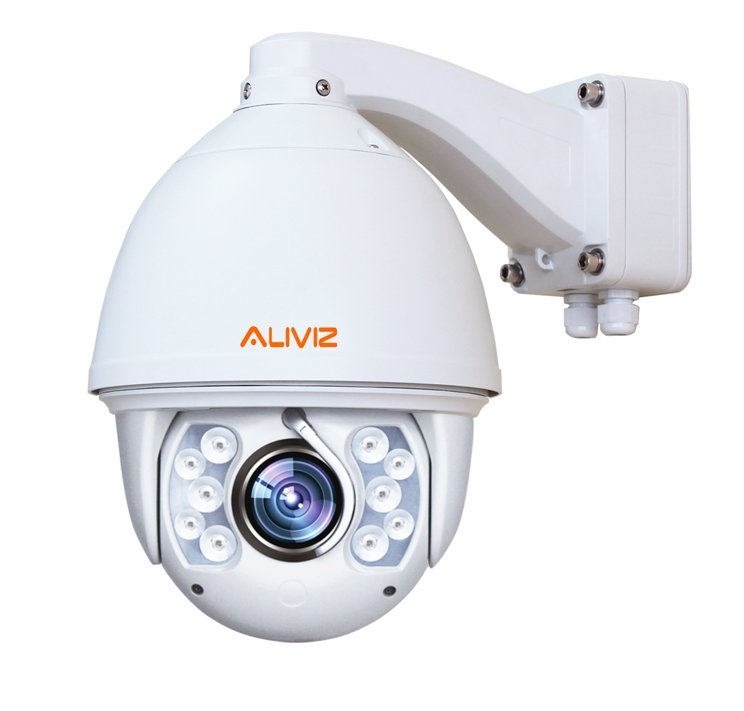

2MP 1080P Auto-Tracking IP PTZ Camera
Model: AS-IP8420A
6” high die-cast alloy aluminum outdoor 1080P IP PTZ Camera with auto-tracking and 20X zoom in for 180M IR surveillance.
1/ Video Analysis Light-Adjustment technology
2/ Auto-Tracking function with zoom in
3/ Motion Detection (Video Analysis)
4/ Aluminum Wiper for rainy day surveillance
5/ Fast Installation with power box
6/ Heater and Fan function
▌Introduction
IR Distance
l Minimum Illumination 0.2 Lux.
l Adopt high performance Germany IR Array LEDS, low power consumption, IR distance 200m.
l Constant current circuit design, IR lights enjoy 30,000 hours life-time.
PTZ Function
• Stepless speed changes, auto zoom/speed matching
• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 400o/S (high speed IR speed dome)
• Auto object track with zoom in/out and motion detection (Auto Track Model)
• Timing actions for 7 days of programmable schedule
• Built-in Semi-conductor heater & digital temperature sensor
• PWM cooling fan vari-speed temperature control
• Reserved network interface and space for network module
• Pan Tilt accuracy +/- 0.1o, 256preset positions
• 8 cruising tracks, each cruising track has 32 presets
• 4 pattern tours,10 Mins memory, 500 programmable instructions
• 8 auto scan with use-defined left and right boundaries and settable scan speed
• Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions
• Soft Address Function: the use can set up the dome address without uninstall the dome
PTZ Motor
• Delicate stepping motor, stable, sensitive and accurate
• 360° Endless Pan and 90° Tilt range (auto-flip) without blind area
• Stepless speed change, auto zoom/speed matching
• Near / far IR Light auto matches camera zoom in/out
Zoom Module
l support auto iris, auto-focus, AWB, BLC
l support ultralow illumination, 0.05Lux/F1.4 (color), 0.01Lux/F1.4 (B/W), 0Lux with IR
l support 3DNR, D-WDR
l effective pixel is 2MP (1080P)
l 20X Optical and 12X Digital
Network Function
l adopt high-performance platform, stable and reliable performance
l support Ethernet control
l can view video by IE browser and Client software
l Supports NAS storage, Video can continue transmit from break network, support Max. 8pcs NAS disks
l support 3-level user authorization management, authorized user & password, HTTPS encryption and IEEE 802.1x network access control
l support dual-stream, H.264/MJPEG compression, multi-level video quality configuration, real-time video output in 1080P
IP67 Weatherproof
• 6 Inch High die-cast alloy aluminum construction
• High Precision Mould with high heat conductivity
• Fully enclosed isolation design for heat sink
• Nanometer Dustproof, waterproof and fog-proof lens
Key & special Technology
1/ Video Analysis Light-Adjustment technology
2/ Auto-Tracking function with zoom in

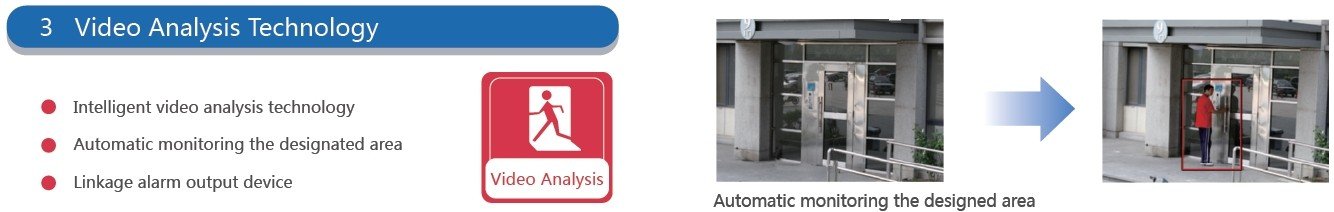

3/ Motion Detection (Video Analysis)

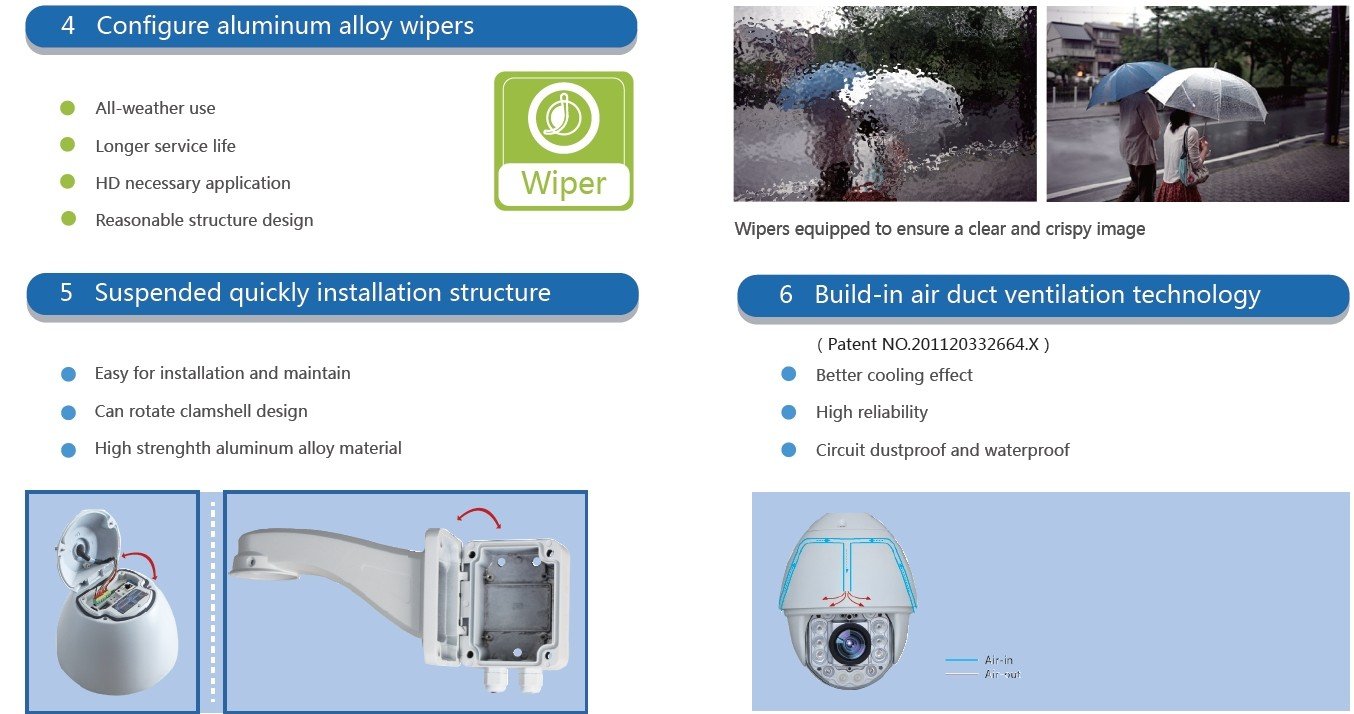

4/ Aluminum Wiper for rainy day surveillance
5/ Fast Installation with power box
6/ Heater and Fan function
▌Specification
Model No. | AS-IP8420-A | |
Zoom module | Image sensor | 1/2.8" Pro Type Exmor Cmos |
Effective pixel | 2.0 Megapixels,HD1920x1080@30fps | |
Minimum | Color: 0.05Lux @ (F1.4，AGC ON), B/W: 0.01Lux @(F1.4，AGC ON)，0 Lux with IR | |
White balance | auto / manual / auto-tracking /outdoor/indoor/fluorescent lamp/sodium lamp | |
Gain control | auto/manual | |
SNR | More than 50dB | |
Noise reduction | 3D&2D | |
BLC | ON/OFF | |
WDR | Support | |
Shutter | 1/1-1/10,000s | |
Day/night mode | Auto ICR color to black | |
Focus mode | Auto /semi-auto /manual | |
Focal length | 4.7- 94mm，20x optical | |
Zoom speed | About 3 sec. (optical, wide angele-telescope) | |
Horizontal | 55.4-3.2 degrees ( wide angel-telescope) | |
Close-up | 10-1000mm( wide angel-telescope) | |
f-number | F1.4-F3.5 | |
Function | IR distance | 200M IR |
IR angle | adjustable | |
Pan speed | 0.01°-360°/S | |
Tilt speed | 0.01°-120°/S | |
Tilt range | -10°-90°, auto-flip 180° | |
Manual speed | High, medium, low (adjustable) | |
Proportional Zoom | Support | |
Number of Preset | 256 presets | |
Patrol | 8 patrols, up to 32 presets per patrol | |
Pattern | 8 scans with settable left and right boundaries | |
Scan between two presets | support | |
Park Action | presets/pattern/patrol/scan between two presets/ auto | |
Area-limit | support | |
Network | Max. Resolution | 1920X1080@30fps |
Frame rate | 30 FPS(1920x1080), 25 FPS(1280×720); | |
Video compression | H.264/MJPEG | |
Network protocol | TCP/IP，HTTP，DHCP，DNS，DDNS，RTP，RTSP，PPPOE，NTP，UPNP，SNMP，FTP，802.1x，QoS，HTTPS，IPv6（SIP，SRTP），ONVIF | |
Preview video simultaneously | Max. 6 channels | |
Dual-stream | Support | |
User permission | Max. 32 users (3-level: administrator, operator, only browse ) | |
Safe mode | Authorized user & password, and MAC address binding; | |
Network interface | Built-in RJ45 port，support 10M/100M | |
API | Support open API, ONVIF | |
Client | Support iVMS-4200 PCNVR | |
Brower | Support IE7, IE8, IE9, Chrome8+, Fireforx3.5+, Safari5+ ,and google brower | |
Input/output | Menu | Chinese/English |
Others | PTZ control protocol | Network |
Wiper | Support wiper to clear lens automatically through software control | |
Power Supply | DC 12V | |
Power Consumption | MAX. 10W (day); MAX. 30W (night) | |
Working Temperature/Humidity | -40degree +60degree, ≤90%RH( frostless ) | |
Protection Grade | TVS4000V lightning protection, surge protection and voltage transient protection, weather proof: IP67 | |
Package size (mm) | 341×228×510 | |
Weight (Kg) | 7KG | |
