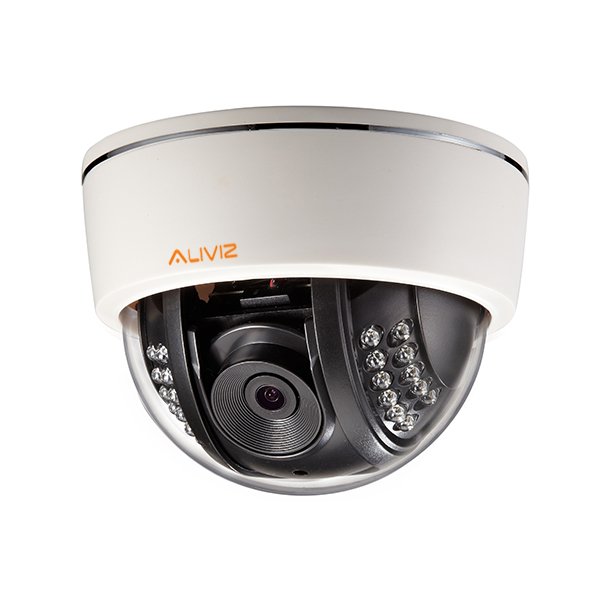

3MP HD 1080P IP Dome Camera
IP Dome Camera

3MP HD 1080P IP Dome Camera

$0.00$0.00(In stock)

Model: AS-H1026-3MP

This dome ip camera could work for both day and night with 3MP resolution for indoor use.

1. 3MP Indoor IP Dome Camera

2. Support audio,P2P,PoE

3. IR 20M for day and night surveillance


▌Introduction

1. High Resolution 1/2.5-inch  Megapixel  AR0331 CMOS

2. Built in 4mm Megapixel Lens with 3MP

3. H.264 compression

4. 2048x1536P@30fps;

5. Real time transmission can up to 30FPS@3MP

6. Day & Night application

7. Support 2-Way Audio Optional

8. Support Motion Detection and P2P

9. DC12V or Power Over Ethernet (PoE IEEE802.3af) Optional

10. Wall Mount Optional, IP66 weatherproof

▌Specification

MODEL

AS-H1026-3MP

Main Processor

TI368

Sensor

AR0331

Max. Res./Max Frame Rate

2048x1536P@30fps;

Min. illumination

0 .1Lux (IR LED On)

CAMERA

Day/Night

True Day/Night with ICR Filter. High Powered IR LEDs

Lens

4/6/8mmMegapixel Lens with 3MP

Horizontal Field of View

78.5°-29.8°

IR LED

36pcs

IR Distance

20-30M

Electronic Shutter

Auto/ User 1/5-1/15,000 sec

VIDEO

Compression

H.264 main profile 5.0 Level

Streaming

Dual Stream Transfer(H.264)CBR/VBR Adjustable
Main Stream(1M~8Mbps)With Local Skim, TF Card etc.
Sub-Stream(0.5MK~2Mbps)With Network Transfer.

Quality Setting

1-9 Level

Brightness/Sharpness

Variable 0-100/0-100

Gain Control

Auto

Text Overlay

Time/Date/Camera/Customs OSD

Masking

4Masking / No limit (through software)

NETWORK

Ethernet

1 Ethernet (10/100 Base-T),RJ-45 connector

TCP/IP

IPv4/IPv6(DHCP/Fixed)

Compliance

Onvif V 2.2

RTSP Video

Standard RFC2326, Support Quicktime/VLC Player.
User Security at Three level administrator,Password protection

Recording Simultaneous

Local Recording,Remote FTP server,TCP/UDP CMS,RTSP Connection

Network Protocol

TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP. Video Streaming from SDK&NVMS/NVR software or 3rd Party applications.

Web Language

English/ Chinese

AUDIO

Input/Output

1X RCA input/ 1xRCA output@1V Line Level

Audio Compression

G.726

GENERAL

Power

DC12V,1A (IR LED On) / PoE Class 3

Temperature

Operating:-10°C~55°C (14°F-131°F); Storage:-20°C~60°C(-4°F-140°F)

Operating Humidity

10%-85% RH

Approvals

CE/FCC Compliant;ISO

Product Dimensions

1pcs/21.6x17.5x14.3cm/0.842kg/ctn

Product Weight

Net Weigh:0.343kg ; Gross Weiht:0.85kg
