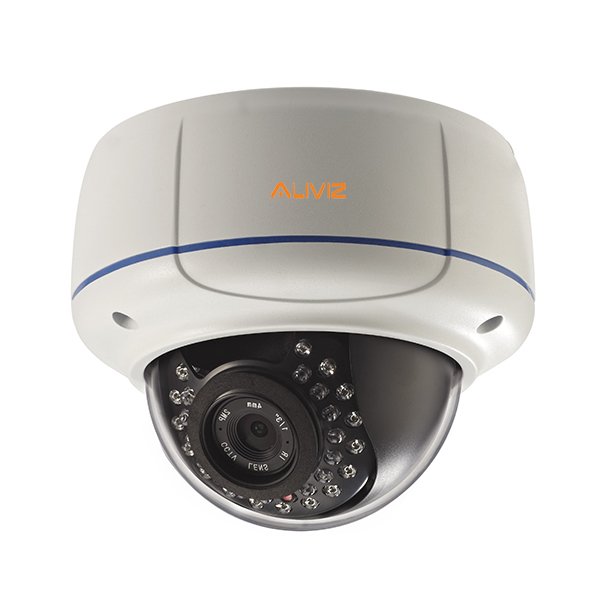

3MP Super Low Lux IP Dome Camera
Model: AS-H1024V-3MP
This dome ip camera could work for both day and night with 3MP resolution under 0.001 Low Lux.
1. 3MP Varifocal IP Dome Camera
2. Support audio,P2P,PoE
3. IR 20M for day and night surveillance
▌Introduction
1. High Resolution Sony 1/2.8" cmos, Starlight low LUX 0.0001,4X 2.8-12mm Auto focus and auto Iris
2. Built in auto-Varifocal 2.8-12mm Megapixel Lens with 3MP
3. H.265/H.264 Video Compression
4. 2048x1536P@30fps;
5. Real time transmission can up to 30FPS@3MP
6. Day & Night application
7. Support 2-Way Audio Optional
8. Support Motion Detection and P2P
9. DC12V or Power Over Ethernet (PoE IEEE802.3af) Optional
10. Wall Mount Optional, IP66 weatherproof
▌Specification
MODEL | AS-H1024V-3MP |
Main Processor | Hi3516 |
Sensor | Sony 124 |
Max. Res./Max Frame Rate | 2048x1536P@30fps; |
Min. illumination | 0.001 |
CAMERA | |
Day/Night | True Day/Night with ICR Filter. High Powered IR LEDs |
Lens | 2.8-12mm Megapixel Lens with 3MP |
Horizontal Field of View | 78.5°-29.8° |
IR LED | 36pcs |
IR Distance | 20-30M |
Electronic Shutter | Auto/ User 1/5-1/15,000 sec |
VIDEO | |
Compression | H.265 4K |
Streaming | Dual Stream Transfer(H.264)CBR/VBR Adjustable |
Quality Setting | 1-9 Level |
Brightness/Sharpness | Variable 0-100/0-100 |
Gain Control | Auto |
Text Overlay | Time/Date/Camera/Customs OSD |
Masking | 4Masking / No limit (through software) |
NETWORK | |
Ethernet | 1 Ethernet (10/100 Base-T),RJ-45 connector |
TCP/IP | IPv4/IPv6(DHCP/Fixed) |
Compliance | Onvif V 2.4 |
RTSP Video | Standard RFC2326, Support Quicktime/VLC Player. |
Recording Simultaneous | Local Recording,Remote FTP server,TCP/UDP CMS,RTSP Connection |
Network Protocol | TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP. Video Streaming from SDK&NVMS/NVR software or 3rd Party applications. |
Web Language | English/ Chinese |
AUDIO | |
Input/Output | 1X RCA input/ 1xRCA output@1V Line Level |
Audio Compression | G.726,G711 |
GENERAL | |
Power | DC12V,1A (IR LED On) / PoE Class 3 |
Temperature | Operating:-10°C~55°C (14°F-131°F); Storage:-20°C~60°C(-4°F-140°F) |
Operating Humidity | 10%-85% RH |
Approvals | CE/FCC Compliant;ISO |
Product Dimensions | 1pcs/23.3x16.4x15.1cm/1.3777kg/ctn |
Product Weight | Net Weight :0.8KG; Gross Weight:1.5KG |
