Mini IP PTZ Camera

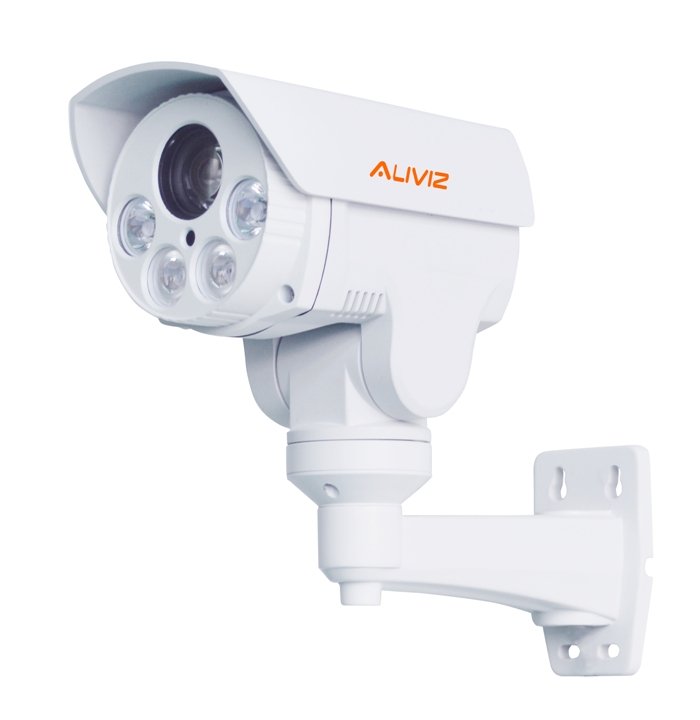

3X 720P Mini IP Bullet PTZ Camera
$0.00$0.00(In stock)
Model: AS-HP805-V03
2. 10X ,3X for both 2MP and 1.3MP Optional
3. 10X Mini PTZ Support audio, alarm and PoE
Categories: Mini IP PTZ Camera
▌Introduction
▌Specification
| Model No. | AS-HP805-V03 |
| Image Sensor | 1/3" Sony Exmor CMOS Sensor |
| Effective Pixels | 720P(1280X720) |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Day & Night | ICR |
| Min. Illumination | 0lux (IR ON) |
| Audio compression | G.711-u law |
| Communication | NO |
| Image Settings | AWB, AGC Adjustable |
| Exposure Mode (Auto/Iris Priority/Shutter Priority/Manual) | |
| Sharpness, Saturation, Brightness & Contrast Adjustable | |
| WDR Range | Digital WDR |
| Noise Reduction | 2D/3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Video Compression | H.264 |
| Resolution | 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) 50HZ:25fps(1280x960) 60HZ:30fps(1280x960) |
| Bit rate | 32kbps-16Mbps |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens | 3-9mm |
| Iris | Auto Iris |
| Lens Mount | Fixed mount |
| Water-proof | IP66 |
| Bracket | 1-Axis Wall Bracket |
| Dimensions | 153mm×93mm×130mm（L×W×H） |
| Weight(gross) | 920g |
| Optical Zoom | 3X |
| Digital Zoom | 10X |
| IR Distance | 60M |

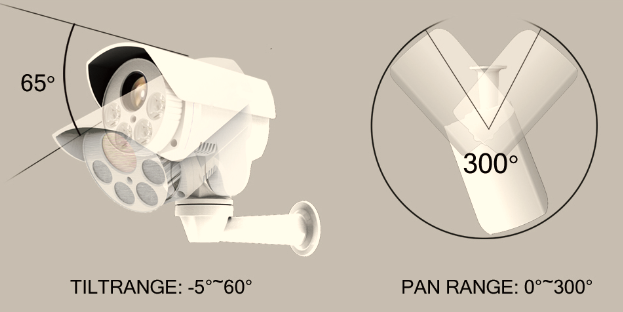

| Pan Rotation Range | 0〫~300 〫 |
| Tilt Rotation Range | -5〫~60 〫 |
| Pan Speed | 0.5〫~15 〫/s |
| Tilt Speed | 0.5〫~10 〫/s |
| Preset Position | 256 |
| Network | RJ45 (+PoE) |
| Power | DC Socket |
| SD Card | （Optional） |
| RS485 | Optional |
| Alarm | Optional |
| Remote Monitoring | IE Browsing, CMS 3 Control Software |
| User Access | Supports simultaneous monitoring for up to 6 users with multi-stream real time transmission |
| Network Protocol | TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | （Optional） |
| Power Supply | DC12V/PoE |
| Work Environment | -30℃~60℃, 10%~90% Humidity |
