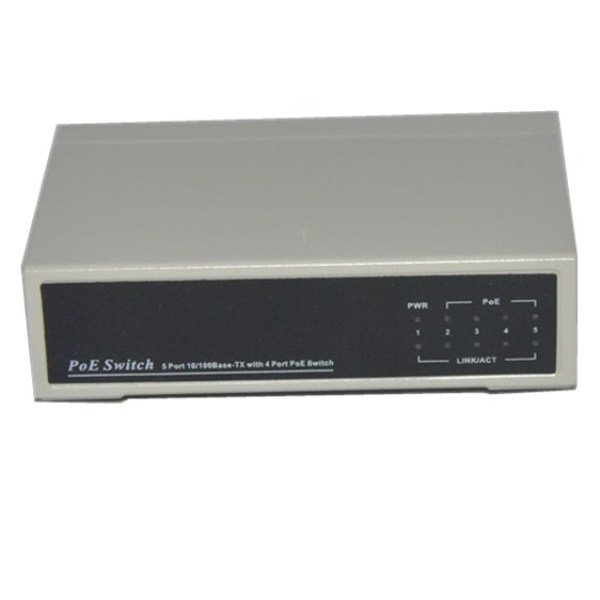

Model: AS-P1004T


5 RJ-45 10/100/1000M ports POE Switch with power adapter.

•   Provides 5 10/100/1000Base-TX ports,
•   4 POE Ports (Ports 2-5), Each POE port output 30W max power
•   High back-plane bandwidth 10Gbps
•   Reliable Power Adapter supply power for both network switch and POE
•   Three optional power adapters: 65W, 96W, 135W


▌Introduction

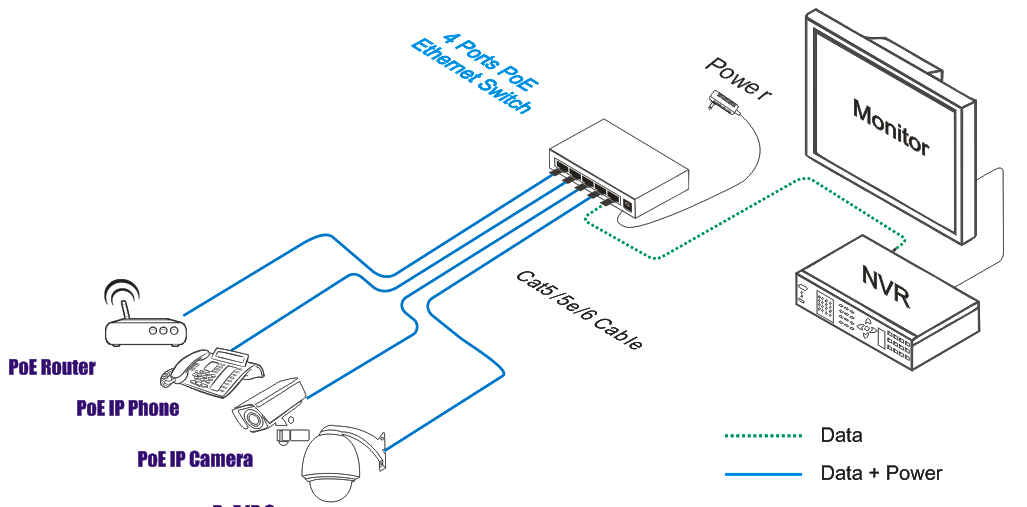

The AS-P1004T is a Small size 5 ports gigabit POE switch which is designed by Aliviz security Technology Company. It provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports; All five ports support Auto MDI/MDIX functions which include 4 ports with POE function (Port2-5). The POE ports can automatically detect and supply power for the IEEE 802.3af or IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The AS-P1004T is a small size metal-shell device which is useful for the small office, home and the IP solution project using. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list). Extend Function: Power lightning protection, solid vlan.






▌Products Features:

•   IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

•   Provides 5 10/100/1000Base-TX ports,

•   4 POE Ports (Ports 2-5), Each POE port output 30W max power

•   High back-plane bandwidth 10Gbps

•   Reliable Power Adapter supply power for both network switch and POE

•   Three optional power adapters: 65W, 96W, 135W

•   IEEE802.3x Flow control

•   Surge protection for power port and data ports

•   Supports PoE IEEE802.3af and IEEE802.3at compliant Powered Device (PD)

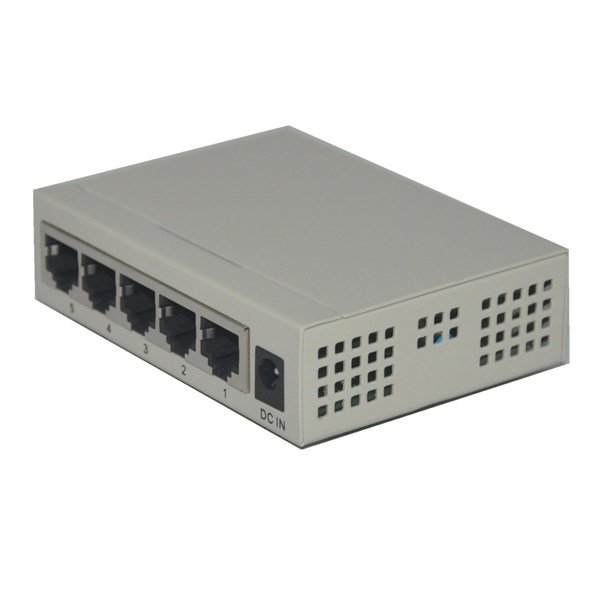

•   Small size metal case for the POE switch

•   EMI standards complies with FCC, CE class B

•   Extend Function: Power lightning protection, solid vlan.




▌Specification

ItemAS-P1004T

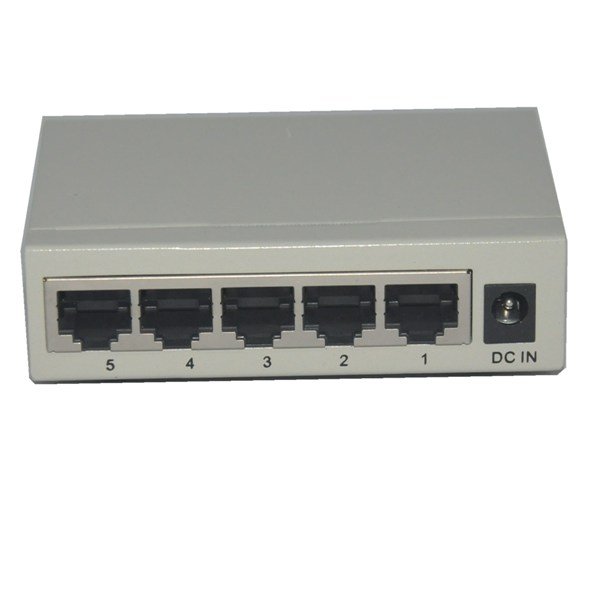

Fixed Port5 10/100/1000Mbps RJ45 port
POE Ports4 PoE ports (Port 2-5)
LED IndicatorsPWR, PoE, Link/Act LED.
Input voltage

100V~240V AC,50/60Hz (for power adapter)

48VDC (for switch)

Network Media

10BASE-TX: UTP category 5, 5e cable (≤250m)
100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: UTP category 5, 5e cable (≤150m)

Forwarding Rate

10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port

1000BASE-TX: 148800pps/port

Power Supplies65W,96W,135W Optional
Operating temperature0℃~40℃.
Storage temperature-10℃~70℃.
Relative humidity20%~85% (non-condensing).
Thermal methodsFanless.
Switching capacity10G.
MAC address table4K.
Traffic controlIEEE 802.3x full-duplex flow control.
Size9.2*6.9*2.5cm
Package Size19.1*14.1*6.4cm
Weight0.7Kg
Package

AS-P1004T POE switch

User Manual

Power Adapter

Power Cable

Warranty Card

PoE
PoE port4 10/100/1000Base-TX ports.
PoE StandardIEEE802.3af, IEEE802.3at,per port 15.4W,max30W
Pin assignmentV+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).
Extend FunctionPower lightning protection, solid vlan.
