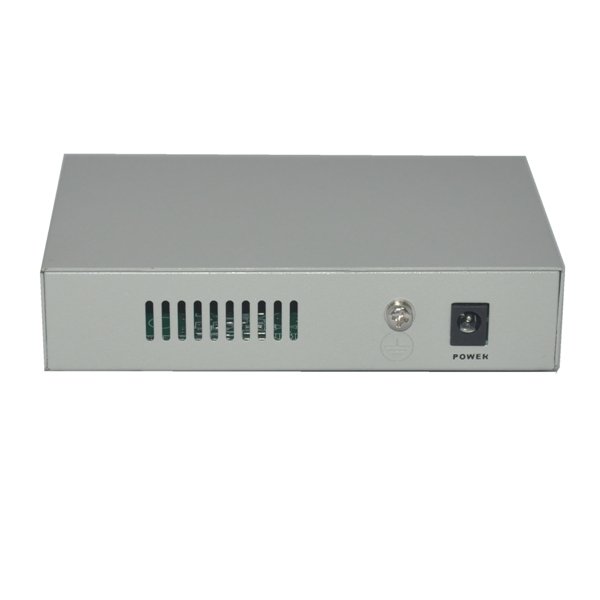

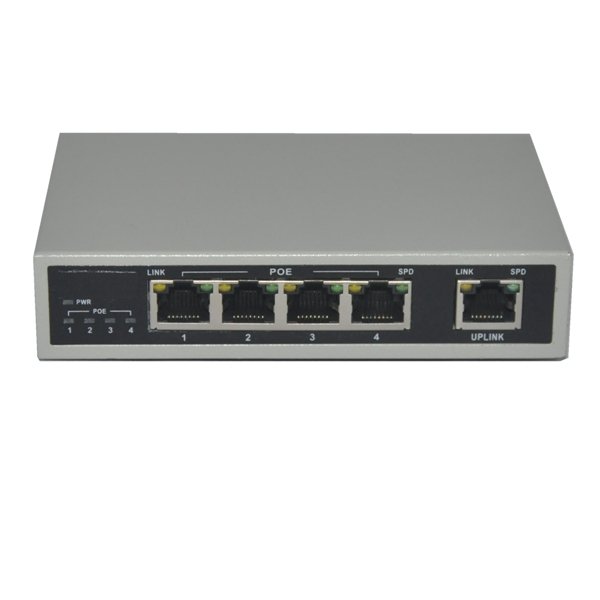

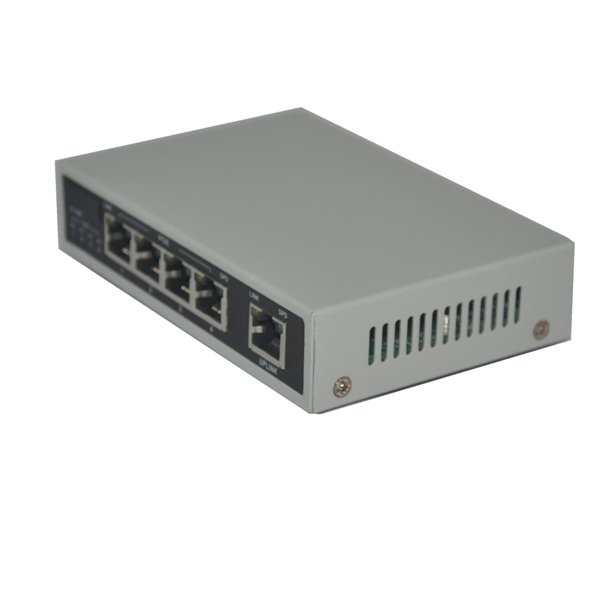

5 RJ-45 10/100M ports POE switch with power adapter

▌Introduction

The AS-P1004 is a 5 ports Power-over-Ethernet (POE) switch which is designed by Aliviz security Technology Company. It provides 5 10/100Mbps Auto-Negotiation RJ45 ports and 4 ports with POE function (Port 2-5). The POE ports can automatically detect and supply power for the IEEE802.3af/at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The AS-P1004 is a small size metal-shell device which is useful for the small office, home and the IP solution project using. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list). Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Products Features:

•   IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

•   Provides 5 10/100Base-TX ports

•   4 POE Ports (Ports 2-5), Each POE port output 30W max power

•   High back-plane bandwidth 1Gbps

•   Reliable Power Adapter supply power for both network switch and POE

•   Three optional power adapters: 65W, 96W, 135W

•   1K entry MAC address table of the PoE switch with auto-learning and auto-aging

•   IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode

•   Surge protection for power port and data ports

•   Supports PoE IEEE 802.3af or IEEE802.3at compliant Powered Device (PD)

•   Compact metal case for desktop or wall-mounting.

•   EMI standards complies with FCC, CE class B

•   Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

▌Specification
