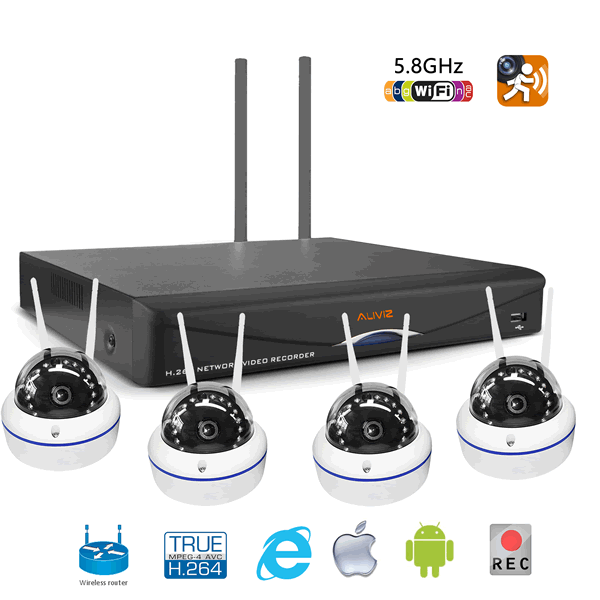

5.8G 4CH NVR KITS
Model: AS-K8008-1MP
5.8G 4CH NVR KITS
1. 100M WIFI Distance transmission
2. 5.8GHZ WIFI Signal more stable and stronger than normal 2.4GHZ3. 2 pcs Antena for IP Camera and NVR, just plug and play4. 1 pcs Built-in WIFI Router inside NVR, No configuration on router5. Support iphone and android mobile phone surveillance.▌Introduction
This New 5.8GHZ 4channel 100M Plug and Play Bullet WIFI NVR Kits Surveillance System take the latest 1/4 inch mega pixel progressive scan CMOS, with enhanced color filters and unique concentrator technology, under a variety of conditions even light environment, can also provide surprising megapixels high-definition, bright image. Applicable to the financial, telecommunications, government, schools, airports, factories, hotels, museums, traffic monitoring, real-time requirements Ultra HD quality places.
AS-K8007-1MP Package
1.4PC 1MP wifi IP bullet Camera
2.1PC wifi NVR
3.4PC IPC Power supply
4.1PC NVR Power supply
5.1PC Mouse
▌Specification
Model Number | AS-K8008-1MP | |
Operating System | Embedded LINUX operating system | |
Image Code Control | Image code quality adjustable, variable bit stream and constant bit stream optional | |
Dual Stream | Automatic Identification stream | |
Video Standard | 720P(1280×720)1-25fps | |
Monitoring Image Quality | 720P(1280×720) | |
Image Motion Detection | Each screen can set multiple detection areas and set 6-level sensitivity | |
Recording Playback Quality | 4ch 720P playback | |
Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode | |
Backup Way | Support 1 HDD. | |
Operation Way | Mouse | |
Local Login | User name and password | |
Recording Storage | Local HDD, | |
External Ports | Video Input | 4×(1280*720) IP camera |
Video Output | 1ch VGA+1ch HDMI | |
Network Port | 1PCS RJ45,10M/100M，Built-in 5.8G wireless router | |
USB Port | 2USB 2.0 ports | |
Wireless Port | With two wireless antennas(2pcs wifi) 5.8G | |
HDD | HDD Port | 1 SATA HDD Port |
MAX Capacity | Each port supports MAX 3TB HDD | |
Mobile Surveillance | Support( iPhone, Android) | |
Power Supply | 12V/3A | |
Power Consumption | ≤25W（without HDD） | |
Working Temperature | -10℃～＋55℃ | |
Working Humidity | 10％-90％ | |
Dimension | Equipment：257mm×250mm×42mm | |
Weight(without HDD) | N.W.：1.5Kg； | |
Camera Specification
Camera | Pixel | 1.0 Mega Pixel, 1280*720 |
Lens | 2MP 4mm lens or 3MP 3.6MM LENS，15PCS IR LED,20-30 meters IR distance | |
Electronic shutter | 1/25s-1/30,000s | |
Low Lux | Color：0.1Lux@F1.6 B/W：0.08Lux@F1.2 | |
Video parameter | Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer | |
Audio-video coding parameters | Compression | H.264 Main Profile@Level 3.0 / MJPEG optional |
Video bit rate | 0.1M-6Mbps, customized | |
Bit stream type | video stream | |
Audio compress | N/A | |
Audio bit rate | N/A | |
Triple bit streams | Support | |
Image | Video resolution | 1280*720 |
Video flame rate | 1-25 frames/second | |
Function | PTZ | N/A |
IP auto pop-out | IP auto pop-out at customer end | |
Password protection | Multi-level protection on password | |
Intellectual alarm | Mobile detection, video shielding | |
Basic functions | password protection | |
Interface | Audio input | N/A |
Video output | N/A | |
Network port | 1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port | |
Serial port | N/A | |
Wireless network | WIFI | Support WIFI Distance 100M (5.8G) |
Cell phone monitor | N/A | |
3G network | N/A | |
others | POE | N/A |
Power supply | DC12V/1.0A | |
Power consumption | <6W | |
Working temp | -10℃ ~ +55 ℃ | |
Working humidity | 10 ~ 85% | |
Dimension | 19.5*10*10.7 | |
Weight | 0.4Kg |
