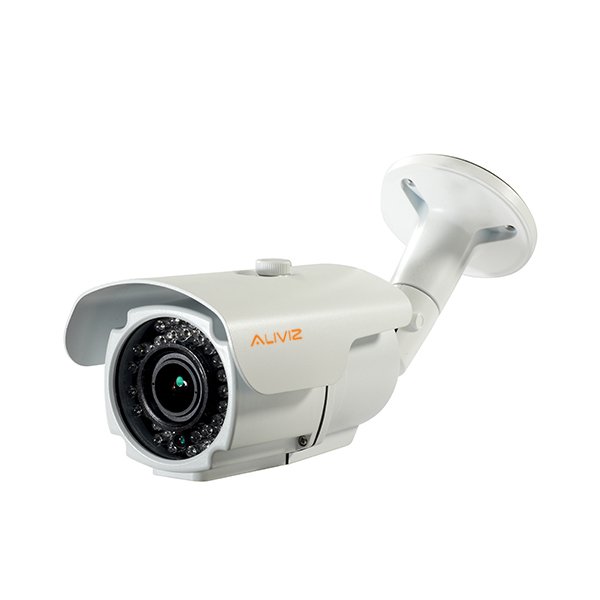

5MP 1080P Outdoor Weatherproof IP66 IP Bullet Camera

MODEL

AS-H1012V-5MP

Main Processor

TI368

Sensor

1/2.5-inch 5.0 Megapixel TI 9P006 CMOS

Max. Res./Max Frame Rate

2048x1536P@30fps

Min. illumination

0.01 Lux (IR LED On)

CAMERA

Day/Night

True Day/Night with ICR Filter. High Powered IR LEDs

Lens

2.8-12mmMegapixel Varifocal Lens

Horizontal Field of View

78.5°-29.8°

IR LED

35pcs super Flux IR LED

IR Distance

20-25 Meters (65-82 feet)

Electronic Shutter

Auto/ User 1/5-1/15,000 sec

VIDEO

Compression

H.264 main profile 5.0 Level

Streaming

Dual Stream Transfer(H.264)CBR/VBR Adjustable
Main Stream(1M~8Mbps)With Local Skim, TF Card etc.
Sub-Stream(0.5MK~2Mbps)With Network Transfer.

Quality Setting

1-9 Level

Brightness/Sharpness

Variable 0-100/0-100

Gain Control

Auto

Text Overlay

Time/Date/Camera/Customs OSD

Masking

8 Masking / No limit (through software)

NETWORK

Ethernet

1 Ethernet (10/100 Base-T),RJ-45 connector

TCP/IP

IPv4/IPv6(DHCP/Fixed)

Compliance

Onvif V 2.2

RTSP Video

Standard RFC2326, Support Quicktime/VLC Player.
User Security at Three level administrator,Password protection

Recording Simultaneous

Local Recording,Remote FTP server,TCP/UDP CMS,RTSP Connection

Network Protocol

TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP. Video Streaming from SDK&NVMS/NVR software or 3rd Party applications.

Web Language

English/ Chinese

AUDIO

Input/Output

1X RCA input/ 1xRCA output@1V Line Level

Audio Compression

G.726

GENERAL

Power

DC12V,1A(IR LED On) / PoE Class 3

Temperature

Operating:-10°C~55°C(14°F-131°F); Storage:-20°C~60°C(-4°F-140°F)

Operating Humidity

10%-85% RH

Approvals

CE/FCC

Product Dimensions

1pcs/27.4x11x11.2cm/0.908kg/ctn

Product Weight

Net Weight :0.908KG; Gross Weight:1.5KG
