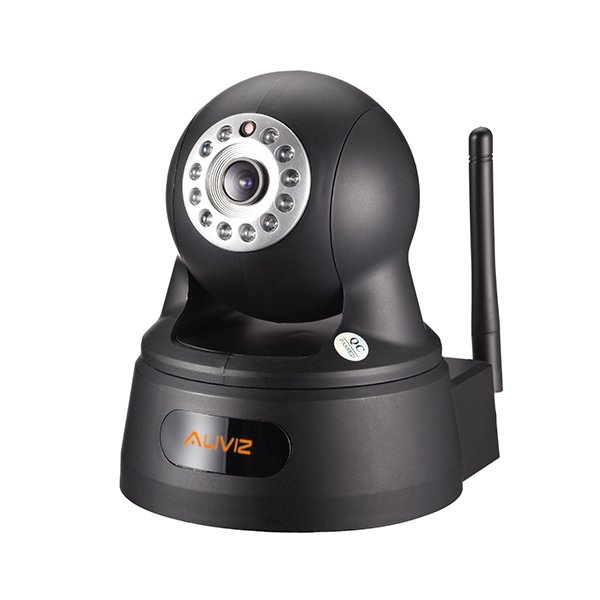

720P IP Home Camera with P2P

▌Introduction

1. 1/4'' Million Pixel Low Illumination CMOS Sensor

2. Built in 4.2mm Lens, PTZ 355° for horizontal and 90° for Vertical rotate
3. H.264 / MJPEG compression Optional
4. Resolution 1280x720, ONVIFV 2.1 Compliant
5. Real time transmission can up to 30FPS@1MP,D1
6. Built in 10pcs IR LEDS ,Up to 10M IR distance
7. Support 2-Way Audio, Wifi ,PoE

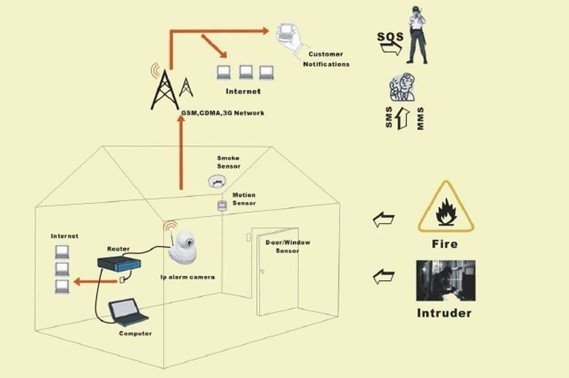

8. Support Motion Detection, Email, SMS, Alarm action function
9. Support P2P(plug to Play)
10. DC12V or Power Over Ethernet (PoE IEEE802.3af)

11. QR Code (Quick Responce Code)

▌Specification

ITEM	AS-IP8909-1MP
LENS	3.6 mm Lens
DEVICE	1/4'' million Low Illumination CMOS Sensor
EFFECTIVE PIXELS	1Mega:1280*720
FUNCTIONS	Yes(motion detection)
ELECTRONIC SHUTTER	1/5-1/15,000 sec
AGC / AE / WHITE BALANCE / BLC	YES
PTZ	YES(Horizontal 360°,Vertical 90°)
IR DISTANCE	10M IR @ 10pcs LEDS
WIFI	YES
ALARM ACTION	YES( Support Email and SMS etc)
S/N RATIO	>50 dB
VIDEO COMPRESSION	H.264
PICTURE RESOLUTION	720P:1280*720
IR CUT	YES
IR SENSITIVITY	YES
SD CARD	YES
B/W	YES
NETWORK	WIFI / Ethernet (10/100 Base-T),RJ-45 connector
IMAGE FRAME RATE	15 FPS
AUDIO COMPRESSION	G.726
TWO WAY AUDIO	support
ALARM I/O	1 channel in/out put

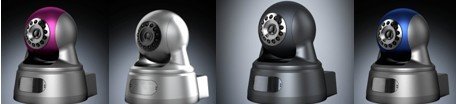

CASING	White, black, blue and purple color optional
PROTOCOL	HTTP ,DHCP, IP,TCP,UDP,DDNS,PPPOE,FTP,SMTP; WIFI/802.11/B/G
WEB BROWSER	Microsoft Internet Explorer 6.0 above, Firefox,Safari,Google,
PHONE SUPPORT	Iphone,Android
REMOTE	Built in Web server, supports remote view and management
BROWSING	Support 10 user to browsing at the same time
POWER	PoE (IEEE802.3af) ,DC12V
SECURITY	Three level administrator, Password protection
TEMPERATURE	-10°~50°C (14°~122°F)
HUMIDITY	-10~85%
POWER	PoE (IEEE802.3af)
WEIGHT	1 kg
DIMENSION mm	100x99x118 (L*W*H)
APPROVALS	CE ,FCC
