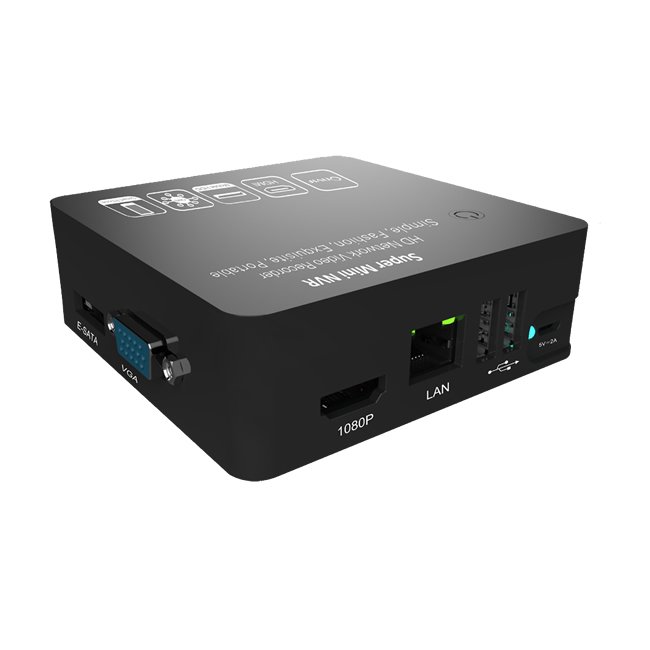

9Ch 5MP/3MP Mini NVR support Smart Phone
Mini NVR

9Ch 5MP/3MP Mini NVR support Smart Phone

$0.00$0.00(In stock)

Model: AS-N620-8EH


Mini NVR support 9Ch 5MP/3MP IP camera and support smart phone surveillance.

1. 9×(2048*1536)+sub[960*576]+4Ref.+4Play  / 9ch 3.0MP IP Camera
2. 9×(2592*1944)+sub[960*576]+4Ref.+1Play/
3. 9ch 5.0MP IP Camera Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android)

▌Introduction

Key Features:

•Desktop Installation, Mini II 1HDD(2,5 inches) NVR, Support 4T HDD;

• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place

• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard

• Support megapixel HD network video preview, storage and playback;

• Support search, playback and backup by event;

• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream, and 4 channels playback;

• Support monitor PTZ on preview mode

• Offer CMS for free

Main Functions:

1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for

the project construction;

2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters

are more easy and convenient;

3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly

under preview and playback modes;

4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;

5. The recording playback is shown by time bar and different color represents different recording type. It is very

fast and easy to find check the recording;

6. Recording backup can be accurate to second. Any time period of backup is available;

7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can

be viewed directly;

8. With 3G, WIFI wireless connection functions;

9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;

10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD




▌Specification

Model NumberAS-N620-8EH
Operating SystemEmbedded LINUX operating system
Image Code ControlImage code quality adjustable, variable bitstream and constant bitstream optional
Dual StreamEach channel can set main stream and sub stream
Video Standard1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps
Monitoring Image Quality1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)
Image Motion DetectionEach screen can set multiple detection areas and set 6-level sensitivity
Recording Playback QualityAny 9ch 960P playback, 4ch 5MP/3MP/1080P playback simultaneously
Region CoverEvery channel can set 4 cover regions(IPC Support)
Recording ModeSupport manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
Backup WaySupport U disk, USB mobile HDD, USB DVD-RW. network storage and backup
Operation WayMouse, Keyboard
Local LoginUsername and password
Recording StorageLocal HDD, network
External PortsVideo Input①9×(1920*960)+sub[720*576]+4Ref.+9Play      9ch 1.3MP IP Camera
②9×(2048*1536)+sub[960*576]+4Ref.+4Play          9ch 3.0MP IP Camera
③9×(2592*1944)+sub[960*576]+4Ref.+1Play    9ch 5.0MP IP Camera
/
Audio Input9ch network audio input
Video Output1ch VGA+1ch HDMI
Network Port1 RJ45,10M/100M/1000M self-adaptive LAN port
USB Port2 USB 2.0 ports
Wireless PortWIFI
HDDHDD Port1 2.5” SATA HDD Port + 1 E-SATA HDD Port
MAX CapacityEach port supports MAX 4TB HDD
Mobile SurveillanceSupport( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply5V2A
Power Consumption≤10W(without HDD)
Working Temperature-10℃~+55℃
Working Humidity10%-90%
DimensionEquipment:162mm×162mm×35mm, Packing: 210mm×210mm×65mm
Weight(without HDD)N.W.:280g;With packing:700g
Outside Carton20 pcs/carton. 215mm×215mm×610mm; Weight:14Kg
Installation WayDesktop Installation
