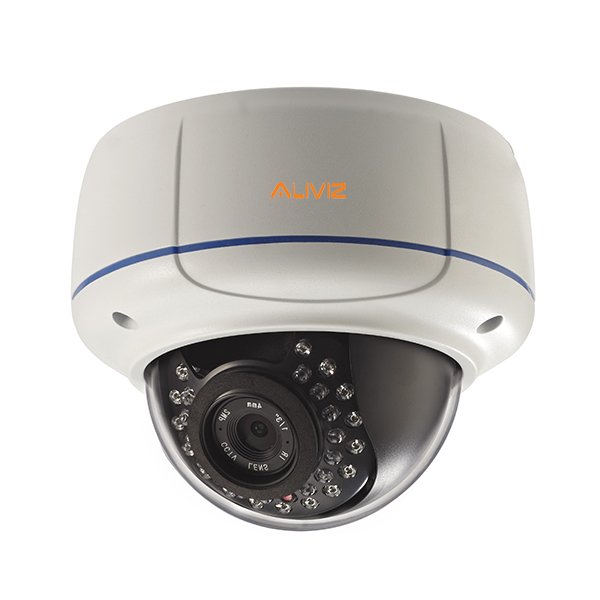

H.265 4K 5MP Starlight Light IP Dome Camera
Model: AS-H1024V-5MP-Low Lux
This dome ip camera could work for both day and night with 5MP resolution.Could work at full color mode at night .
1/ HD Super Low lux starlight 5MP IP Dome Camera
2/ Support audio,P2P,PoE
3/ Support Motion detection
4/ 5MP IP Dome Camera supports
5/ 5MP:2592*1920,@30fps
▌Introduction
1. High Resolution 1/1.8 Megapixel Sony 178 Sensor
2. Built in 4/6/8/12mm,2.8-12mm Megapixel Lens Optional
3. H.265/H.264 / MJPEG compression Optional
4. 2592*1944@30fps
5. Real time transmission can up to 30FPS @ 5 megapixel
6. Day & Night application
7. Support 2-Way Audio Optional
8. Support Motion Detection and P2P
9. DC12V or Power Over Ethernet (PoE IEEE802.3af) Optional
10. Wall Mount Optional, IP66 weatherproof
▌Specification
MODEL | AS-H1024V-5MP-Low Lux |
Main Processor | Hi3516A |
Sensor | 1/1.8" Sony 178 |
Max. Res./Max Frame Rate | 2592*1944@30fps |
Min. illumination | 0.001 Lux (IR LED On) |
CAMERA | |
Day/Night | True Day/Night with ICR Filter. High Powered IR LEDs |
Lens | 4/6/8/12mm Megapixel Lens or 2.8-12mm Megapixel Lens |
Horizontal Field of View | 78.5°-29.8° |
IR LED | 36pcs |
IR Distance | 30M |
Electronic Shutter | Auto/ User 1/5-1/15,000 sec |
VIDEO | |
Compression | H.265 main profile 5.0 Level |
Streaming | Dual Stream Transfer(H.264)CBR/VBR Adjustable |
Quality Setting | 1-9 Level |
Brightness/Sharpness | Variable 0-100/0-100 |
Gain Control | Auto |
Text Overlay | Time/Date/Camera/Customs OSD |
Masking | 8 Masking / No limit (through software) |
NETWORK | |
Ethernet | 1 Ethernet (10/100 Base-T),RJ-45 connector |
TCP/IP | IPv4/IPv6(DHCP/Fixed) |
Compliance | Onvif V 2.2 |
RTSP Video | Standard RFC2326, Support Quicktime/VLC Player. |
Recording Simultaneous | Local Recording,Remote FTP server,TCP/UDP CMS,RTSP Connection |
Network Protocol | TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP. Video Streaming from SDK&NVMS/NVR software or 3rd Party applications. |
Web Language | English/ Chinese |
AUDIO | |
Input/Output | 1X RCA input/ 1xRCA output@1V Line Level |
Audio Compression | G.726,G711 |
GENERAL | |
Power | DC12V,1A (IR LED On) / PoE Class 3 |
Temperature | Operating:-10°C~55°C (14°F-131°F); Storage:-20°C~60°C(-4°F-140°F) |
Operating Humidity | 10%-85% RH |
Approvals | CE/FCC Compliant;ISO |
Product Dimensions | 1pcs/23.3x16.4x15.1cm/1.377kg/ctn |
Product Weight | Net Weight :0.8KG; Gross Weight:1.5KG |
