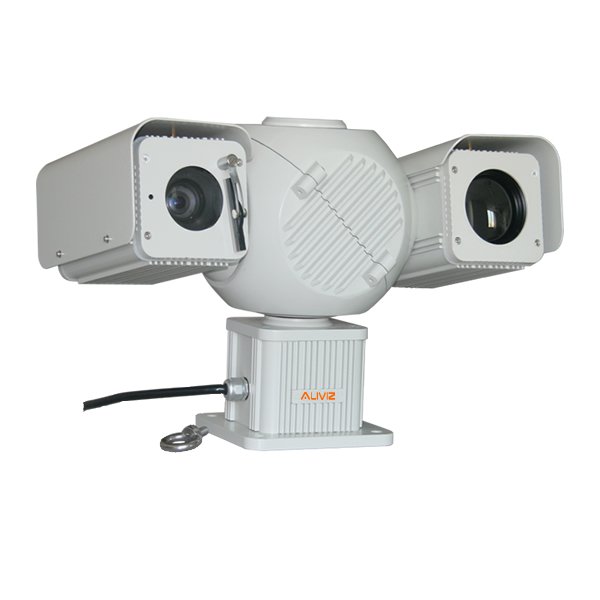

HD Laser night vision camera for forest-fire prevention monitoring
Model: AS-GS3075
AS-GS3075 is Aliviz recommend HD Laser night vision camera models for super-long-distance forest-fire prevention and railway monitoring.
Main Use:
Army border, police anti-smuggling, marine fisheries, forest fire prevention, safe city, oil fields, factories, airports, railway station, docks, etc.
▌Introduction
AS-GS3075 is Aliviz recommend HD Laser night vision camera models for super-long-distance forest-fire prevention and railway monitoring. With 50X optical zoom f=4.3-129mm,optional thermal camera f=50/75,F1.0,AS-GS3075 can precisely identify people and car at 1500m, and detect fire point as far as 2000M. With top IP68 grade and hanger for easy installation, AS-GS3075 combined with multiple Aliviz patented and technology advantages, this model is your first choice for night monitoring.
Main Use:
Army border, police anti-smuggling, marine fisheries, forest fire prevention, safe city, oil fields, factories, airports, railway station, docks, etc.
Features:
- High-speed and highly-integrated, it has easy-operation, high efficiency, strong wind-resistance, and easy installation features.
- 38X optical zoom f=4.3～129mm HD camera, it can identify people and car No. as far as 2Km.
- Fog penetration and auto-focus function, easy operation.
- Infrared thermal use focus-free camera, f=50mm\75mm optional.
- Thermal image overlap and real-time temp display function optional.
- Remote control the non- homogenization correction function on thermal image, restore clear picture.
- Remote E-driven optical axis correction function ensures color and infrared centrally fit.
- Image stabilizer to ensure clear picture during jerk
- PTZ data transmissions function for precisely position and event analysis.
- 128 preset positions (preset accuracy 0.01°), 4 cruising tracks, and Horizontal scan.
- Horizontal 0.01 ° / sec to 80 ° / sec, Vertical 0.01 ° / sec to 80 ° / sec
- 360°horizontal, 90°~-90vertical
- Integration design, fast, strong and anti-corrosive, IP68 high waterproof.
- Surge & Lightning protection function, the effective lightning range is 4500VA.
- Hanger hole for easy installation
▌Specification
Camera Specifications | |
Imaging sensor | 1/2.8’’Exmor CMOS 2.0mega pixel |
Lens | 30x optical zoom, f=4.3～129mm，F1.6～F4.7 |
Focusing system | Automatic/Manual, withpatentedhigh-speed night focuses technology. |
Image format | H.264 video code, HP1080P, dual-stream |
Illumination | 0.05Lx(ICR On,1/50 Sec) |
Fog penetration function | Electronic & phonology fog penetration function, 4 times visibility increase |
Intelligent Noise Reduction | Yes |
Thermal Camera Specification | |
Thermal detector | 384*288, Non-refrigeration focal pan, Temp sensitivity＜50mK,7.5-14um response |
Thermal camera | f=50mm/75mmoptional, F1.0 |
Temp real-time display | optional |
Remote setting | Remote operation system menu, shift to different operative mode |
Operating Indicators | |
Speed control | Manual: Horizontal 0.01 ° / sec to 80 ° / sec, Vertical 0.01 ° / sec to 80 ° / sec |
rotation angle | 360°horizontal, 90°~-90vertical |
Preset position | 128 preset positions (preset accuracy 0.01°).Memory function keeps position and accuracy data remain even after power off. |
Idle time function | Idle 1-240 minutes, it will execute preset position, lateral scan, cruise group order. |
Timing function | Timing for image turn color to black, alarm, pattern scan |
Cruise group | 4 cruising tracks, each cruise tracks have 16 inspection points. |
Superposition of character | Both mandarin and English; Support ABC input, digital input, Chinese intelligent input and character input. |
Interface Specifications | |
Video output interface | SupSeperate100MEthernet interface,lightning protection:2500V |
Communication interface | PELCO-D/P protocol, PTZ data transmission |
Power supply interface | AC24V, max power consumption: 70W; without heater50W |
Environmental Indicators | |
Manual demist, defrosting | On/Off |
Applicable environmental | －55°C～65°C，Humidity ≤95％RH ( Non-condensing ), can be used at 3500 meters altitude climate. |
Anti-wind capability | Work correctly at150km/hr wind speed, and withstand the max speed of210km/hrs |
Surge and lightning protection function | Power interface: 4500V, communication and video interface: 2500V |
Protection class | IP68 |
Net weight | 18KG |
