Keyboard

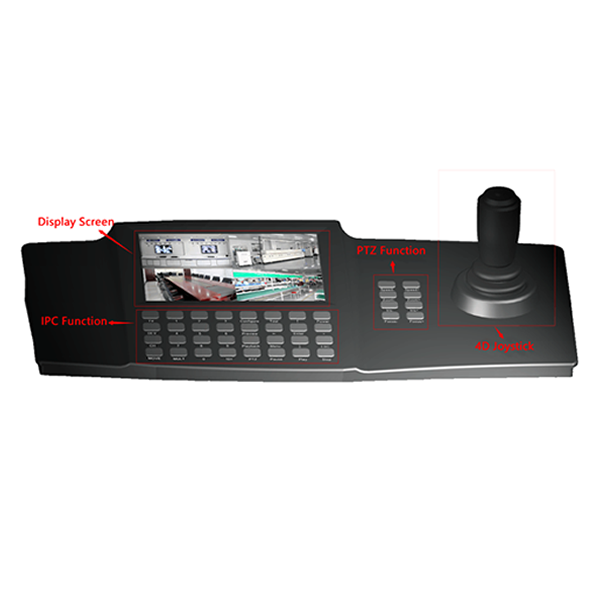

NETWORK CONTROL KEYBOARD
$0.00$0.00(In stock)
Model: AS-IP1001K-4D
2/ Four Dimensional Joystick Control on menu and speedome;
3/ PTZ Functions;
4/ Support Video-Wall playback;
5/ Support voice intercom;
6/ Support keyboard configuration parameter import and export;
7/ Support remote configuration on device parameters;
8/ Shortcut key for video wall operation;
9/ Support U disk and network upgrade;
Categories: Keyboard
▌Introduction
1/ 8 inches, 1024 * 768 resolution TFT;2/ Four Dimensional Joystick Control on menu and speedome;
3/ PTZ Functions;
4/ Support Video-Wall playback;
5/ Support voice intercom;
6/ Support keyboard configuration parameter import and export;
7/ Support remote configuration on device parameters;
8/ Shortcut key for video wall operation;
9/ Support U disk and network upgrade;
▌Specification
Model Number | AS-IP1001K-4D |
Control Mode | Network, RS485 |
LCD Panel | 8 inches, TFT LCD touch screen, 1024 * 768 resolution |
Joystick | 4-axis(zoom, focus, iris) |
Bidirectional Talk | 1 Input，3.5mm Stereo(Level：2.0Vp-p，Impedance：1kΩ) |
Audio Output | 1 Output，3.5mm Stereo(Linear Level，Impedance：600Ω) |
Network Interface | 1*100M/1000M Adaptive Ethernet front-end ports |
Serial interface | 1*RS-485 Standard serial interface |
USB port | 1*USB 2.0 |
Power Supply | DC12V |
Power Consumption | ≤15W |
Working Temperature | -10℃--＋55℃ |
Working Humidity | 10％--90％ |
Dimension | 497mm(W)*260mm(D)*80(H)(Height: exclude joystick) |
Weight | 2.7KG |
