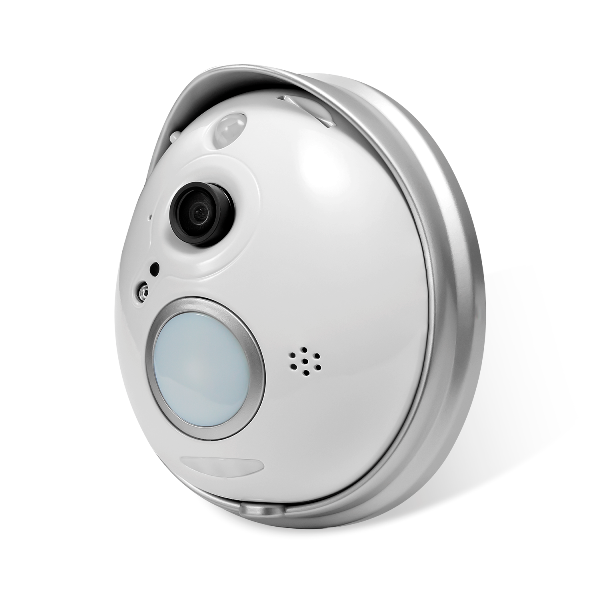

Smart Doorbell Camera
Model: AS-Doorbell-1MP
AS Doorbell 1MP Smart Doorbell Camera
• 1.0 Megapixel CMOS sensor
• 2.8 MM Lens
• 1 IR LED，IR Distance:8 m
• H.264 Code
•Support Plug and Play、P2P Remote control
•Frames rate up to 25fps
•DC 5V/2A
•Compatible Onvif Protocol
•wifi 802.11b/g/n
▌Introduction
Main Features:
* Dual stream encoding (H.264/MJPEG)
* 1/4-inch 1.0 Megapixel CMOS, include 2.8mm fixed lens;
* High resolution: 1280*720@25fps ;
* Support Real-time video talking, Phone control IP Doorbell, motion detection, voice message;
* Support Mico-SD Card for local storage, visitor video,stay alert ;
* 180 Degree Wide angle Viewing
* Alarm action; support email message etc.
* Support ONVIF Standard, P2P Plug and Play
▌Specification
Item | AS-Doorbell-1MP |
Sensor | 720P OV9712D CMOS |
Size | 1/4 |
Day and Night | Yes |
Min.Scene Illumination | 0.1lux（IR ON） |
Infrared sensitivity | Support |
Filter | IR-CUT |
IR LED | Yes |
IR Distance | 8M |
Electronic Shutter | 1/5-1/15,000/s |
Visual Angle | 65° |
LENS |
|
Lens | 2.8MM |
Focus | Fixed Lens |
Aperture | Auto |
Video | H.264 compression |
Compression | H.264 Main Profile |
Picture Resolution | Main Flow: 1280*720@20fps Minor Flow: 640*360@30fps |
Flow Type | Dual Stream encoding |
Bit Rate | 128-2560kbps |
Bit Rate Type | CBR/VBR |
S/N Ratio | >50DB |
Audio/ Alarm | MIC |
Audio input/output | one channel audio input, one channel audio output |
Audio Compression | G.711/G.726 |
Alarm way | PIR |
Alarm processing | Push Alarm Messages to Mobile Phone，Log record, SD card storage etc。 |
Network |
|
Protocol | HTTP、TCP/IP、UDP、SMTP、DDNS、DNS、SNTP、DHCP、FTP、RTP、RTSP、UPNP、ONVIF、28181 |
Wireless | WiFi 802.11b/g/n |
Features |
|
Mobile Phone | Support iPhone、Android |
Remote access | Real time monitoring on App，SD card playback and Cloud storage |
SD Card | Support TF/micro SD卡（Up to32GB） |
Battery | Support |
Anti-theft design | Stay in 20 seconds to 30 seconds PIR automatically detects, push messages to the mobile phone |
Real-time Messages push | automatically push messages to the mobile phone, Voice talkback
|
Physical properties |
|
Accessories | Power adapter,, Operation manual, CD, |
Power Supply | DC5V/2A |
Temperature | -10°~60°C |
Humidity | -10~85% |
Weight | 150g |
Certification | CE ,FCC |
