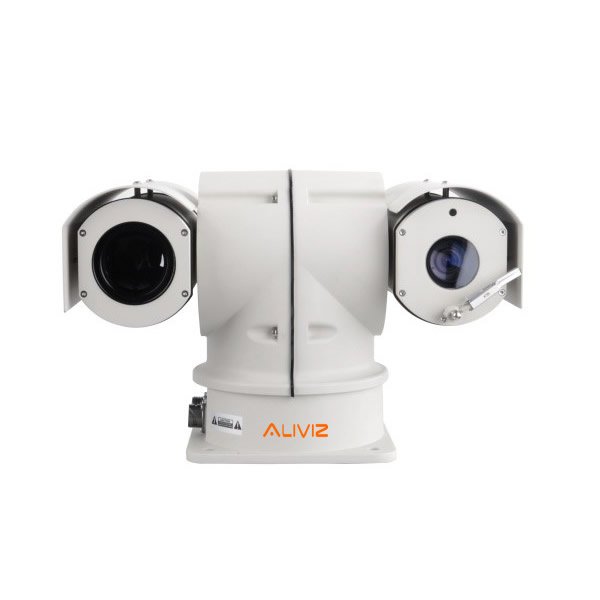

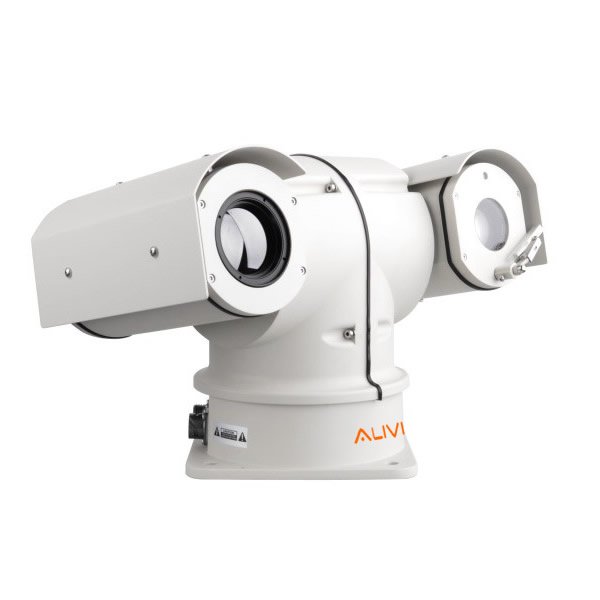

Temperature Detection Thermal IP Camera
Model: AS-TM8822-JY
AS-TM8822-JY is temperature detection thermal IP camera.
1.Uncooled IRFPA Microbolometer
2.Temperature detection
3.Sensitivity 50mK
▌Introduction
Key features
1.Uncooled IRFPA Microbolometer
2.Temperature detection
3.Resolution 420x315
4.Sensitivity 50mK
5.25/35/50 mm lens optional
6.Vision Optical Zoom 22X
7.Infrared detection wavelength 8-14um
8.Color mode Black-Heat /White-Heat/Rainbow/Iron-Red
9.Support DVE image Enhance

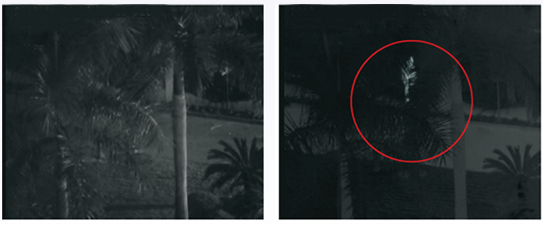

Identify the hidden object behind tree
Hot water piper situation checking
Common IP Camera Thermal IP Camera know all situation of hot-water piper

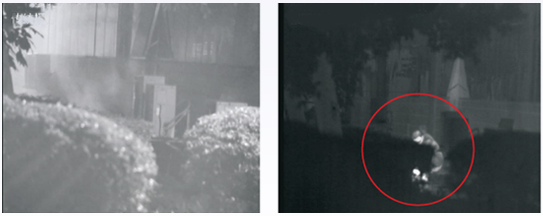

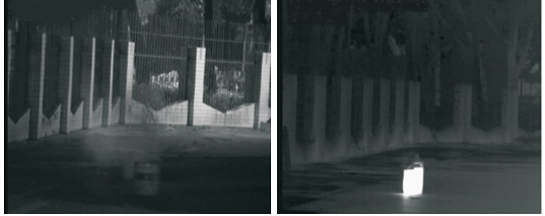

Identify the Fire Source
Common Camera know idea about the barrel Thermal IPC could see the fire inside the barrel
Defog Function
Common IPC cannot see object under fog Thermal IPC could see object through fog
Temperature Detection
Common IPC can’t see cigrate Thermal IPC could get the cigrate temperature
▌Specification
CAMERA | ||
Detector Type | Long-Life,Uncooled IRFPA Microbolometer | |
Array Format | 420x315 | |
Pixel Pitch | ||
Sensitivity | 50mK | |
Spectral Range | 8 to 14μm | |
Temperature Detection | Yes | |
Vision Lens | 22X Optical Zoom | |
Thermal Lens | 25mm,35mm,50mm optional | |
Focus | Manually | |
FOV | 23.7o×17.9o/17o×12.8o/11.9o×9o | |
1000/1500/2000 m | ||
Detect Distance(Human 1.8m) | 500/800/1100 m | |
600/850/1200 m | ||
Recognize Distance(Human 1.8m) | 300/450/650 m | |
350/500/650 m | ||
Temperature Detect Distance(Human) | 180/250/320 m | |
IMAGE | ||
Video Compression | H.264 High/Main/Baseline Profile, MJPEG | |
Bit Rate (CBR/VBR) | 50kb-4000kb ,500kb-12Mb | |
Audio Compression | G.711 ,RAW_PCM | |
Thermal Resolution | D1/30fps | |
Vision Resolution | 1080P/30fps | |
Stream | D1 ,CIF ;1080P | |
Image Color Mode | Black-Heat /White-Heat/Rainbow/Iron-Red | |
DVE Image Enhance | Yes ,Level 0 -6 | |
3D Noise Reduce | Yes | |
Image Correction | Auto/Manual/External | |
Image Overturn | Horizontal /Vertical /Horizontal+Vertical/ | |
NETWORK | ||
Network Protocols: | IPv4/v6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPOE,SMTP,SIP | |
Alarm Trigger | Temperature Alarm,Motion Detection,Network disconnect,Disk alarm,I/O alarm | |
RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. | |
Security | User security authentication, Reset, Hardware WatchDog | |
Web Language | English, Chines | |
System Compatibility | Onvif | |
INTERFACE | ||
Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector | |
Audio I/O | 1ch Audio In,1ch Audio Out | |
Alarm I/O | 1ch Alarm In,1ch Alarm Out | |
RS485 | Yes | |
BNC Output | Yes | |
Reset Button | Yes | |
Edge Storage | Micro SD/SDHC slot ,Max 32GB | |
GENERAL | ||
Power Supply | DC9-DC36V ,AC24V optional | |
Power Consumption | 50W(MAX) | |
Operating Temperature | -20℃~+55℃ | |
Operating Humidity | 0% - 90% RH | |
Ingress Protection | IP66 | |
Approvals | CE / FCC | |
Product Dimensions | 210x246x375mm | |
Product Weight | 10kg | |
Output cable |
| |
