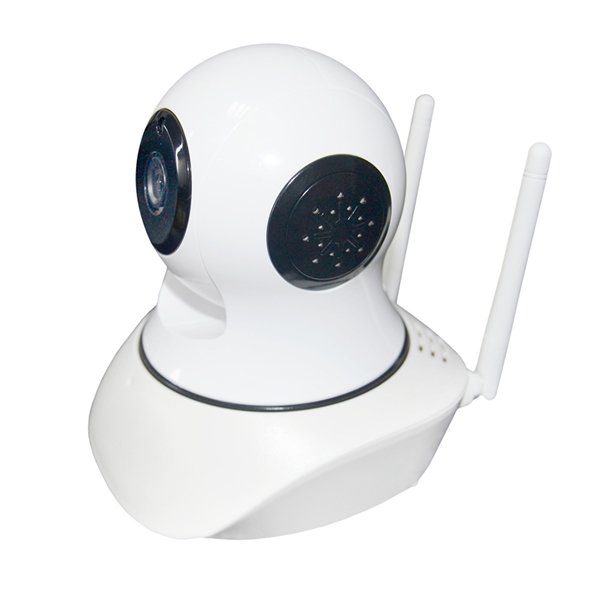

Wifi P2P IP Home Camera

MODEL

AS-8902-1MP

Main Processor

Hi3518

Sensor

1.0 Megapixel CMOS Sensor

Color

0.5lux (IR ON)

CAMERA

Day/Night

Yes

Lens

3.6MM

Filter

IR-CUT Filter

IR LED

Yes

IR Distance

10 Meters

Viewing Angle

Pan: 355°/ Tilt:90°

VIDEO

Compression

H.264

Resolution & Frame

Main Flow: 1280*720@30fps

Minor Flow: 640*360@30fps

Code Stream

Support Dual Stream

Code Rate

32-4096kbps

Bit Rate Type

CBR & VBR

SNR

Above 50DB

Image Enhancement

Automatic White Balance, Backlight Compensation，Luminance, Contrast, Color Adjustment

NETWORK

Alarm Procession

The central control monitor, Got to PTZ preset pos, Send E-mail, Log Record, SD Card storage, etc.

Protocol & Service

TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP, RTCP,Pelco-D

Ethernet Port

Ethernet (10/100 Base-T),RJ-45 connector

Security

IP Address Filter，User Password Protection,  User Access Log

Recording Simultaneous

Local Recording,Remote FTP server,TCP/UDP CMS,RTSP Connection

Network Protocol

TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP. Video Streaming from SDK&NVMS/NVR software or 3rd Party applications.

Web Language

English/ Chinese

AUDIO

Input/Output

1CH

Audio Compression

G.711/G.726

GENERAL

Power

DC 5V/2A

Operation Temperature

-10°C——60°C

Operating Humidity

10%-80%

Approvals

CE/FCC

Accessories

Power adapter, Network Cable, Stand, User Manual, Disk, Screw Bag

Product Weight

Net Weight :0.5KG
