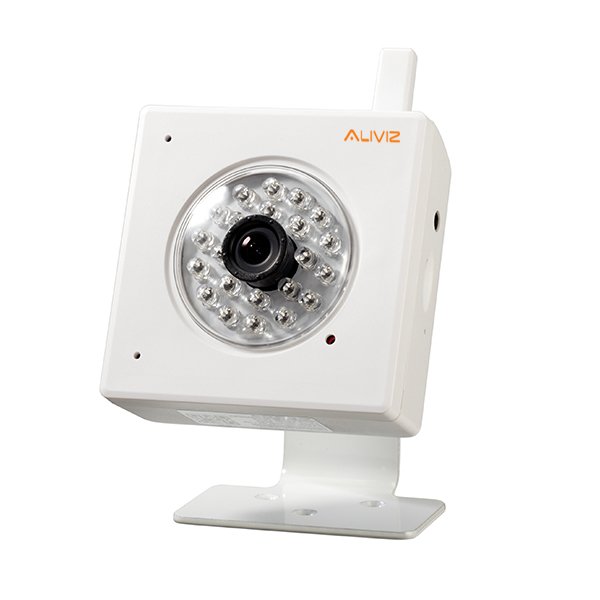

Wireless Wifi Plug and play Mini IP Home Camera
Model: AS-8909
720P /2MP IP Home Camera with Audio: Support P2P ,wifi and Video Push
1. Small WiFi IP Camera for home use
2. 2 megapixel CMOS sensor
3. 2.8mm lens, 22 IR LED, 10M IR Range
4. H.264 video encoding format
▌Introduction
1. Small WiFi IP Camera for home use
2. 2 megapixel CMOS sensor
3. 2.8mm lens, 22 IR LED, 10M IR Range
4. H.264 video encoding format
5. Support mobile phone P2P (plug to Play) remote viewing without complicated IP setup.
6. Support PC CMS, web browsers remote viewing.
7. Frame rate 15FPS@2MP, 25FPS@1MP.
8. Support motion detection, privacy mask, timing video recording.
9. With TF card slot, support 32G Max.
10. Support event triggering alarm, snapshot, email notification.
11. With microphone, speaker interface.
12. Compatible with Onvif 2.0 protocol
13. Support 2-Way Audio, Wifi ,PoE
14. Support Motion Detection, Email, SMS, Alarm action function
15. DC12V or Power Over Ethernet (PoE IEEE802.3af)
16. QR Code (Quick Responce Code)
▌Specification
Model | AS-8909 |
Image sensor | 1/4 inch 2 megapixel CMOS sensor |
Effective pixels | 2MP:1600*1200, 1MP:1280*720 |
Min. illumination | 0.5 LUX (color), 0LUX (IR ON) |
Color to B/W | Auto |
Infrared night vision | Yes |
IR-Cut filter | Dual optical filter, day/night mode auto switch |
Lens | Prime lens 2.8mm |
Visual angle | Horizontal 72 degree |
Internal system | Linux |
Infrared range | 8-10 meters |
Motion detection | yes |
Privacy mask | yes |
Video recording | manual,alarm,motion detection,timing |
BLC | yes |
Iris | Auto Iris |
S/N Ratio | >50 dB |
Video encoding format | H.264 |
Video definition and frame rate | Main stream:1600*1200@15fps, 1280*720@25fps |
Sub stream: 640*360@25fps, 160*112@25fps | |
Bite rate | 32K~ 4 M bps |
Audio compression format | G.711 |
Talkback function | Yes, with 1 microphone input ,1 speaker output |
Network interface | WiFi, RJ45 |
ONVIF protocol | Compatible |
Network protocol | HTTP/DHCP/IP/TCP/UDP/DDNS/RTSP/SMTP; WIFI/ 802.11/b/g |
Web browsers | IE, Firefox,Google chrome |
Mobile viewing | iPhone, iPad, Android phones supported |
Remote control | DDNS, P2P Supported |
Working temp. | -10°~60°C |
Working humility | 20~80% |
Power supply | DC5V, 2A |
Dimension | 109.7x85x42.9mm |
Net weight | 0.5KG |
